- Control power: 0.01W to 5000W;PWM Duty Cycle: and Quiescent current is 0.04A( not over 40mA when voltage is DC10V to DC30V)
- Operating temperature:-20 to 40.It can perform normally when the temperature is below 0
- Universal speed controller can be used for DC brush motor, suitable for car cooling fan motor, car air conditioning motor, exhaust blower, treadmill motor, etc
- This motor speed controller can also be used for dimming DC lamps or controlling DC heater
- Working Voltage:DC 10-50V;.rated current60APeak current100A
Description:

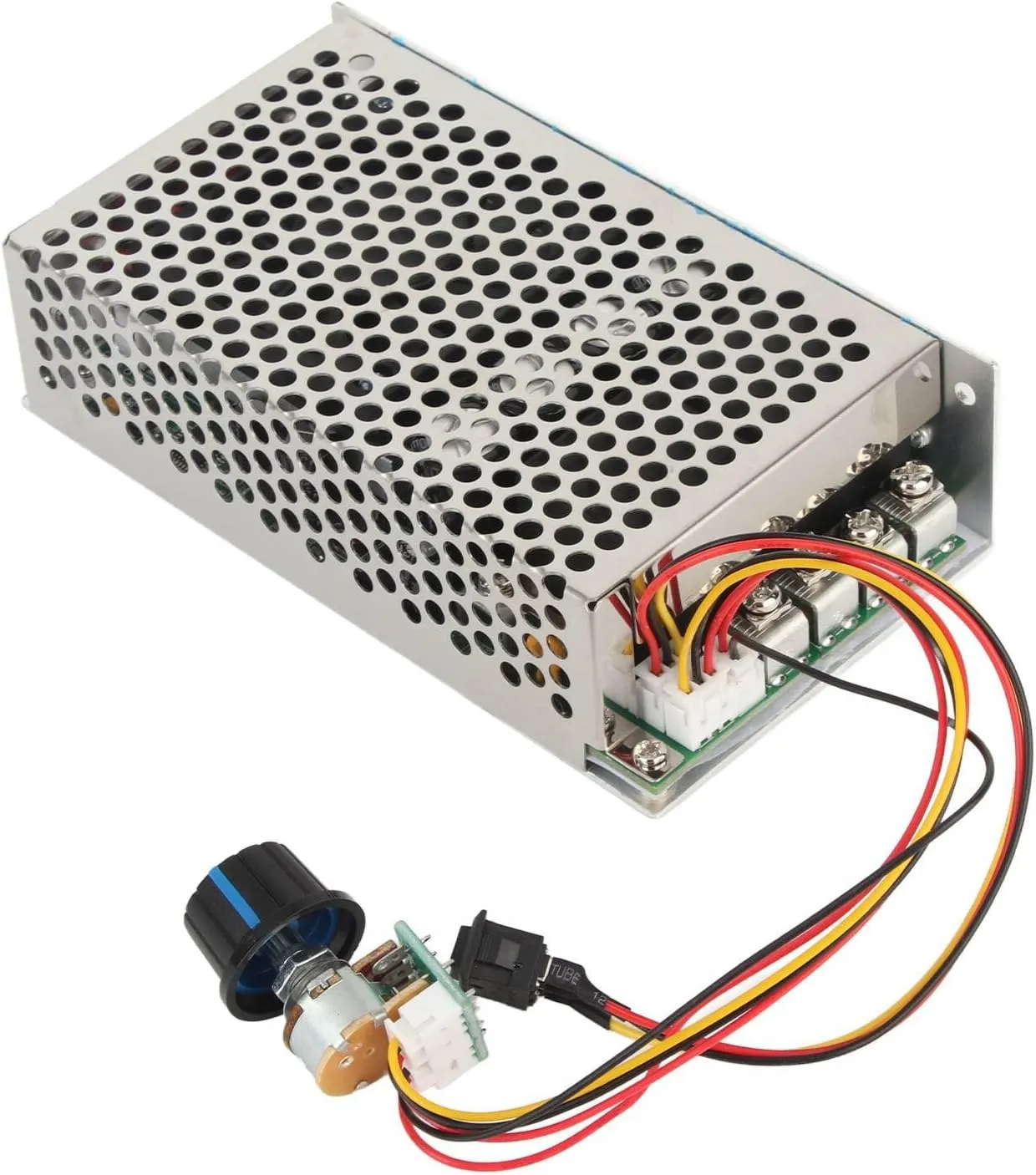

This is a simple and easy-to-use DC motor speed controller of elegant appearance and stable performance. It is made with high quality circuit board which ensures a longer service life. The input voltage can be DC 10V to 50V and control power from 1200W to 3000W(peak). This speed controller is a universal one which can be used on many DC brush motors in car cooling fan motor, car air conditioning motor, exhaust blower, etc.
Specifications:
Working Voltage: DC10V to DC50V
. Rated Current: 60A
Peak Current: 100A
Control Power: 0.01W to 3000W
Power Alters According to Voltage:
12V*100A =1200W
24V*100A =2400W
30V*100A =3000W
50V*100A =5000W(peak)
Quiescent Current: 0.04A( not over 40mA when voltage is DC10V to DC50V)
PWM Duty Cycle:
PWM Frequency: 15khz
Temperature: -20 to 40℃
Size: 14.6 x 8 x 3.8cm / 5.74 x 3.15 x 1.49"
Package Includes:
1 x Speed Controller
