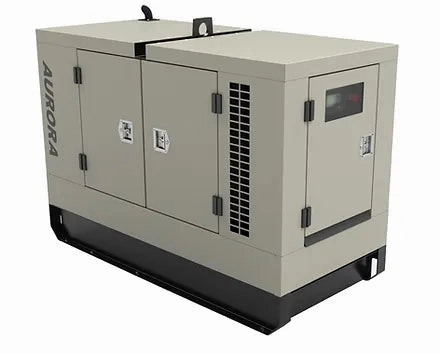

The AGi15PT is a tough-built 15 kW Industrial diesel generator from Aurora Generators.

This generator is powered by a three-cylinder turbo-diesel engine from Perkins (A Caterpillar-owned company). Due to its smaller size, this engine does not require any DOC or DPF but still meets strict EPA Tier4 emission standards.

ENGINE SYSTEM

• Perkins 403F-15TG

• Three-cylinder

• Turbocharged

• Displacement 1.5L

• EPA Tier4 Approved

• Prime Power @ 1800 RPM 15 kWe

• ISO mounted engine supports

• Electronic speed governor

• Liquid Cooled

FUEL SYSTEM

• Fuel tank capacity - 50 gallons | 189 L

• Runtime - > 48 Hours

COOLING SYSTEM

• Radiator Cooled

SYSTEM OUTPUTS

• 2 x 50 Amp California Locking

• 4 x 120 Volt 15 Amp Receptacles

• 1 x USB / USB-C

GENERATOR

• Meccalte

• ECP28 - 4 Poll | 1800 RPM

• Brushless

• Automatic Voltage Regulated

• CSA/UL

• Class H Insulation

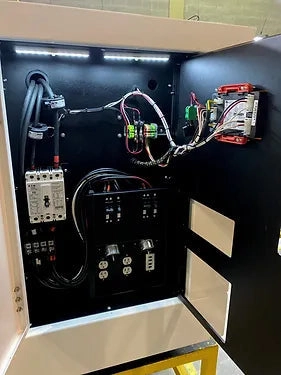

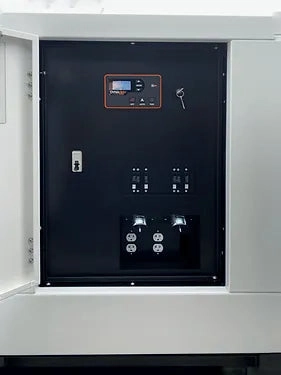

CONTROL SYSTEM & DISPLAY

• Make - DynaGen

• Model - TG410

• Type - Complete control, protection, and engine instrumentation

• Display:

• Oil Pressure
• Engine Temperature
• Fuel Level
• Hour Meter
• RPM
• Real-time clock with time/date
• Battery Voltage
• J1939 DTC codes with custom text
• AC Volts, Hertz and Amps

• Features

• Auto start on Low Battery and other sensors
• Maintenance counter
• Exerciser Clock
• 150 Event Log
• Conformally coated for protection against moisture and contaminants
• Gasket for water ingress protection
• Passcode protected
• Automatic shutdowns and warnings
• Manual and remote start
• Pre-heat and many configurable timers
• Uses industry-standard cube relays
• 5-Year Warranty

ENCLOSURE

• Steel

• Sound attenuated

• White powder-coated UV resistant

• Insulated

• Fully lockable doors

• Central lifting point

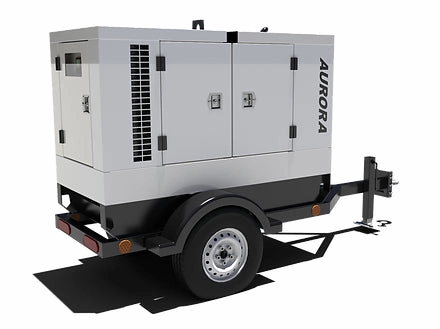

OPTIONAL TRAILER

• DOT approved

• LED lights

• Foldable tongue

• Safety chains & hooks

• Tongue and platform levellers

• Single axel 3500 lbs

• Additional Information

  MANUALS

  • Specifications / Brochure
  • Alternator Operation Manual
  • Generator Controller User Manual
  • Generator CAD Drawings



  GENERATOR CONTROLLER

  • Manufacture - DynaGen
  • Model - TG410
  • Function - Instrumentation & Control
  • Auto-Start - Manual & Automatic
  • Exercise - Programmable
  • Two-wire start compatible
  • Logging - Yes 150 Events
  • Display - Voltage, Speed, Frequency, Battery Voltage, Fuel Level, Oil Pressure, Coolant Temp & More
  • Programmable - Yes
  • Password Protected - Yes

  ENGINE SPECIFICATIONS

  • Make - Caterpillar
  • Model - C2.2F
  • Emission - Tier 4 Final
  • U.S. EPA Tier 4 Final Emission
  • Compact Diesel Particulate Filter (DPF)
  • Requires no DEF
  • Spin-on fuel filter with water detector
  • Glow plug starting aid


  ALTERNATOR SPECIFICATIONS

  • Manufacture - Meccalte
  • Model - ECP28-VL/4
  • Type - Self-regulating Alternator 4 Pole | Dedicated Wiring | Brushless
  • Voltage Regulator - DSR
  • Precision of voltage regulation - ± 1%
  • Output Voltage = 120/240 Volt Single Phase
  • Mechanical Protection - Class H Insulation System | IP23

  CANOPY ENCLOSURE

  • Steel Powder Coated
  • Central Lifting Point
  • Weather Resistant
  • Lockable Doors
  • Sound Attenuated

  FUEL TANK

  • 50 Gallon (48 Hour run time)




  TRAILER - OPTIONAL

  • Steel Channel Construction
  • Black Powder Coated
  • Dexter Premium Quality 3500 lbs Torflex trailer axles
  • Tires ST205/75 R14
  • Black Plastic Fender
  • Lights - LED / Retro-reflective
  • CAD Drawings
