Enjoy a full-scale racing experience with the TRX ready-to-race bundle
The Trak Racer TRX bundle gives you everything you need to feel fully connected to the track.
The TRX cockpit and seat lock you into a stable, adjustable racing position, while MOZA’s direct drive wheelbase and load cell pedals give you sharp, true-to-life feedback with every input.
Gear changes feel fast and tactile with the included sequential shifter and handbrake, and the HD dash keeps your vital data in view.
It’s a full setup built for performance, precision, and complete immersion right out of the box.
Here’s everything included in the TRX ready-to-race bundle
- Trak Racer TRX shifter mount handbrake mount
- Trak Racer TRX seat
- MOZA R16 V2 direct drive wheelbase
- MOZA CS V2P wheel
- MOZA CRP2 load cell racing pedals
- MOZA SGP sequential shifter
- MOZA HBP handbrake
- MOZA CM2 HD racing dash
Set up this DIY racing sim bundle and start racing
We’ve done the hard part—sourcing all the right gear that works perfectly together.
You just follow the steps, put it all together, and boom—you’re racing.
No guesswork, no random parts that don’t fit.
Just a solid, ready-to-build setup that delivers the goods from day one.
Scroll down to check out everything that’s included in your new rig.

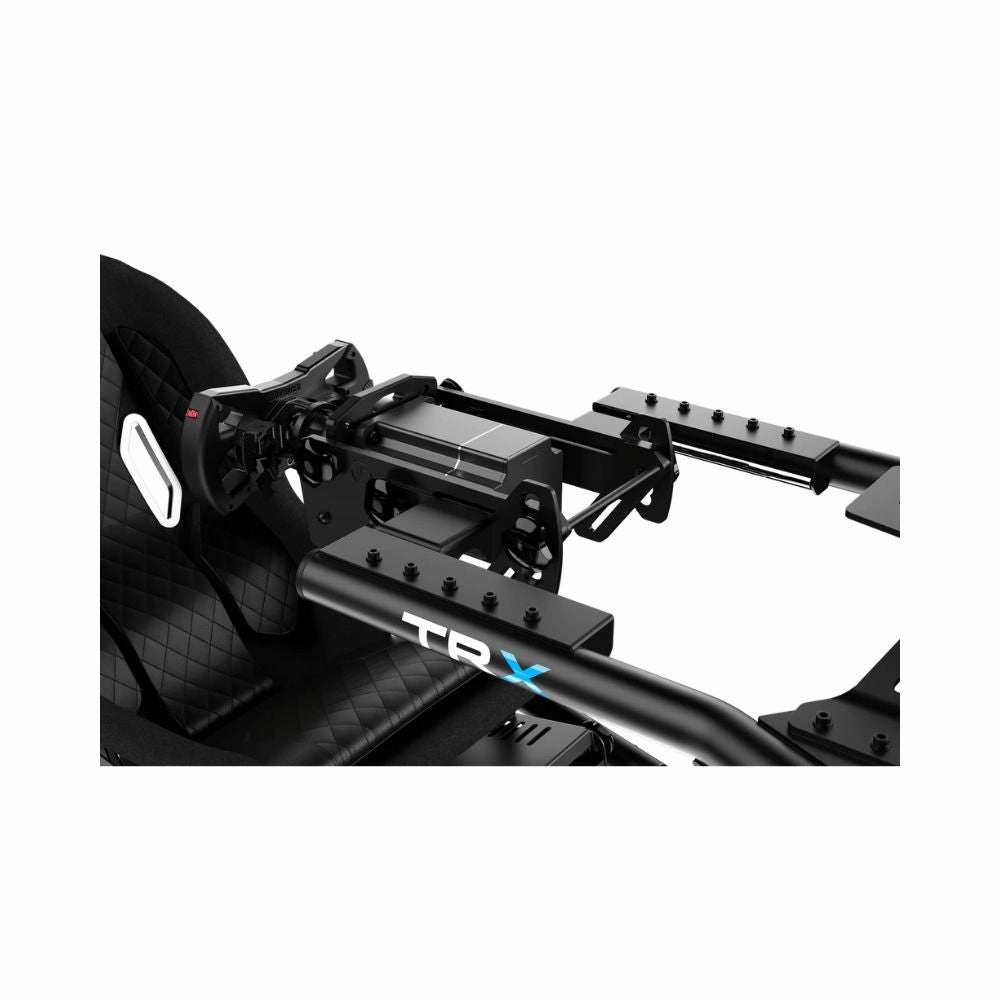

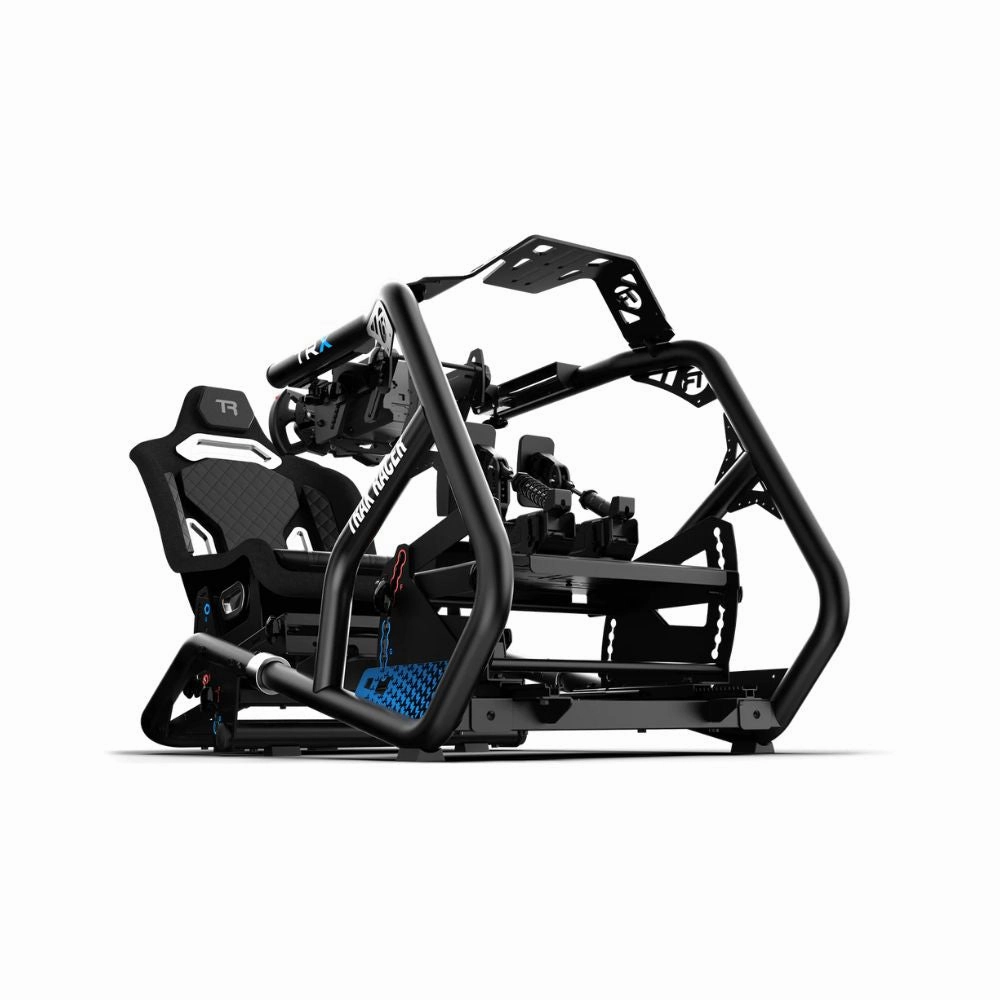

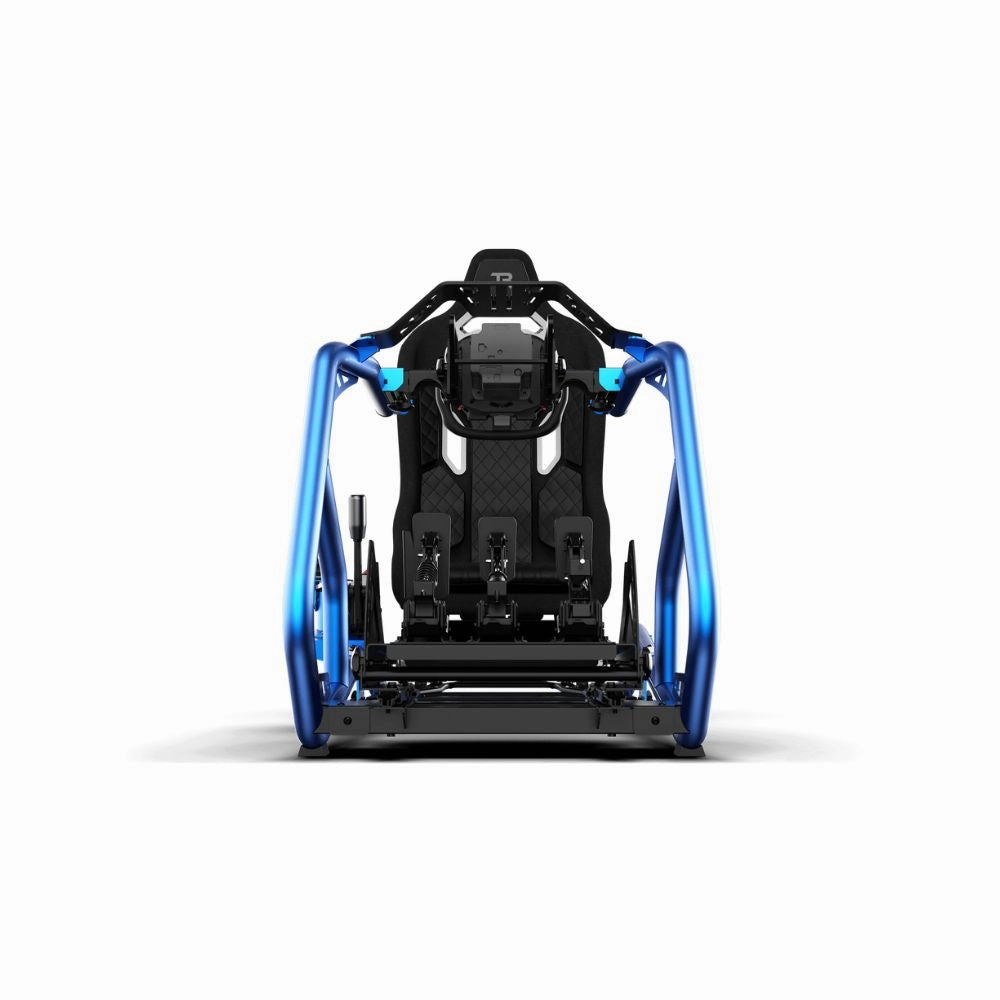

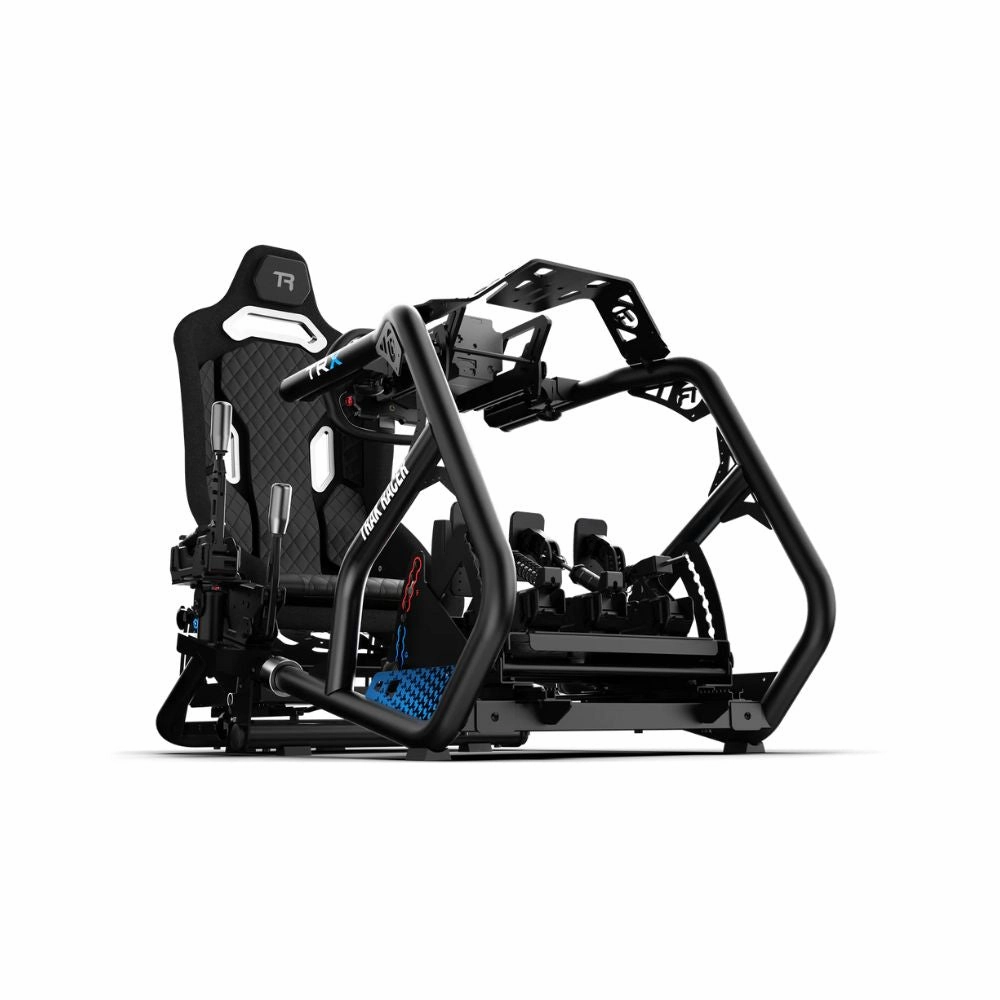

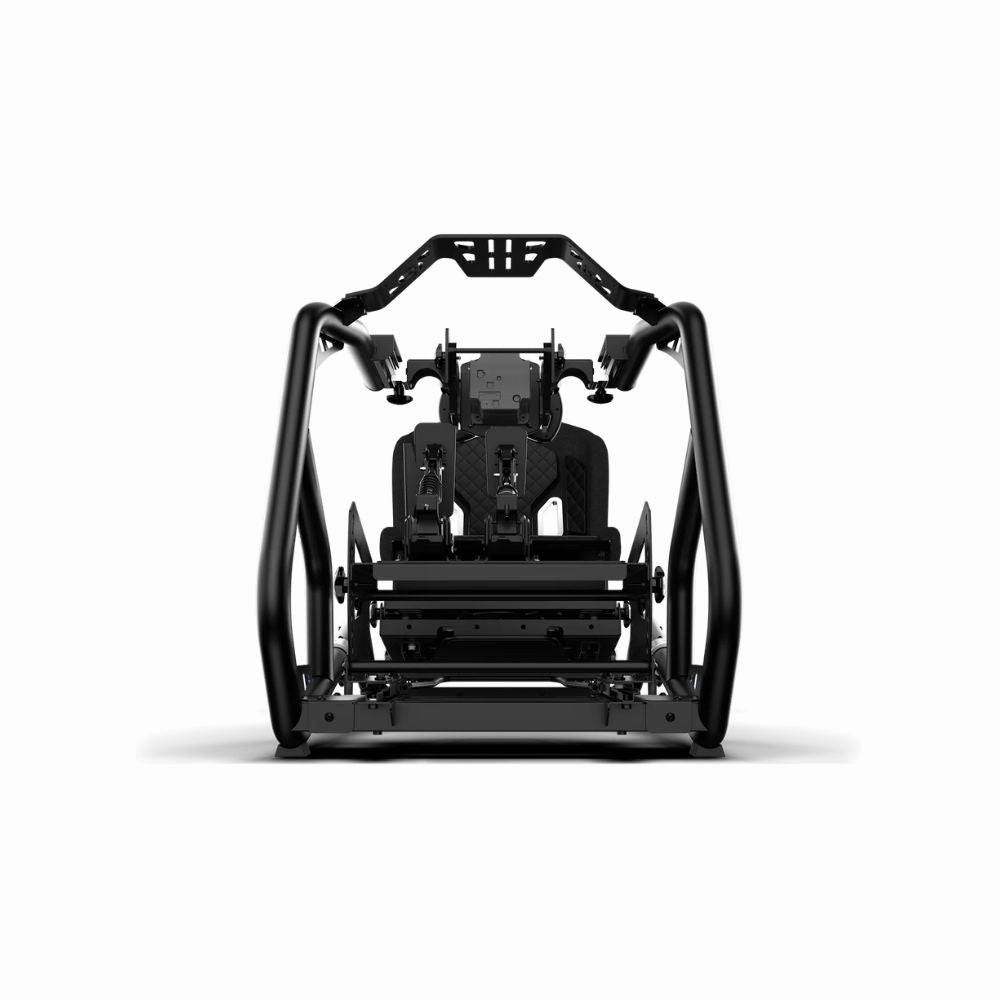

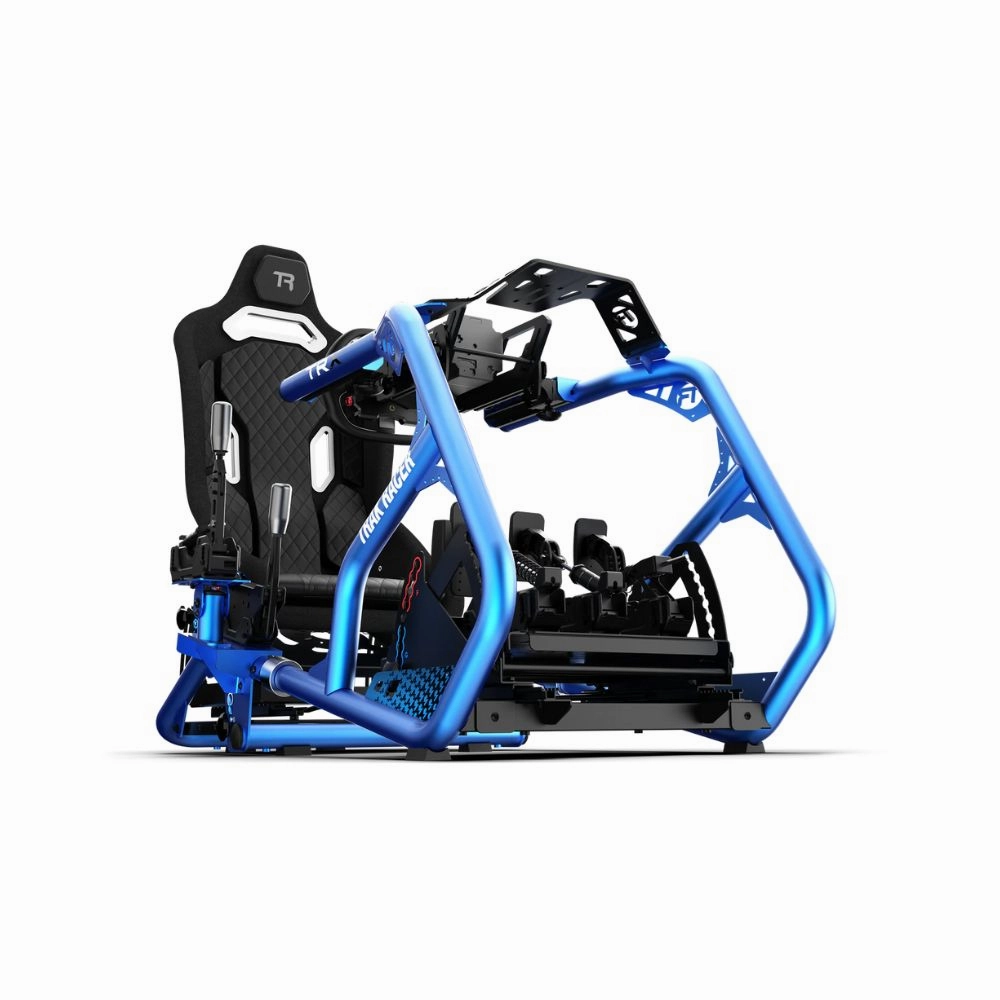

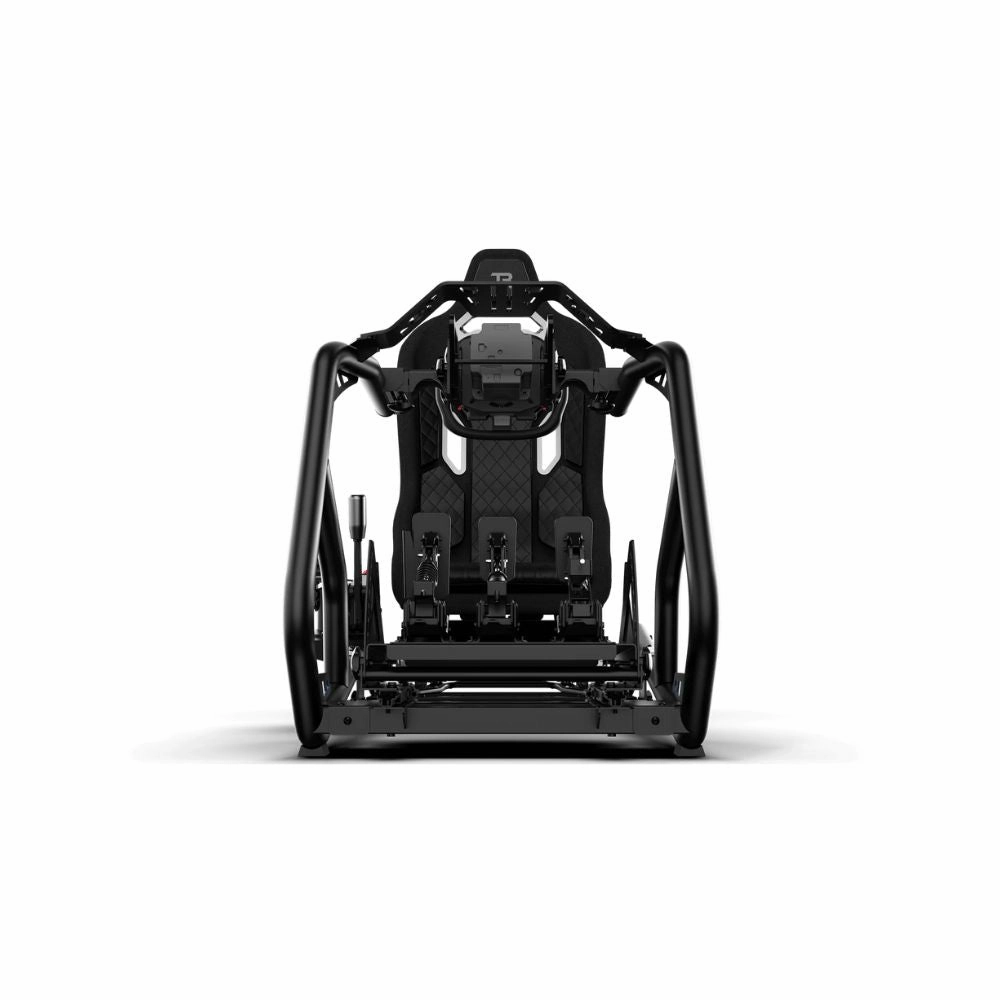

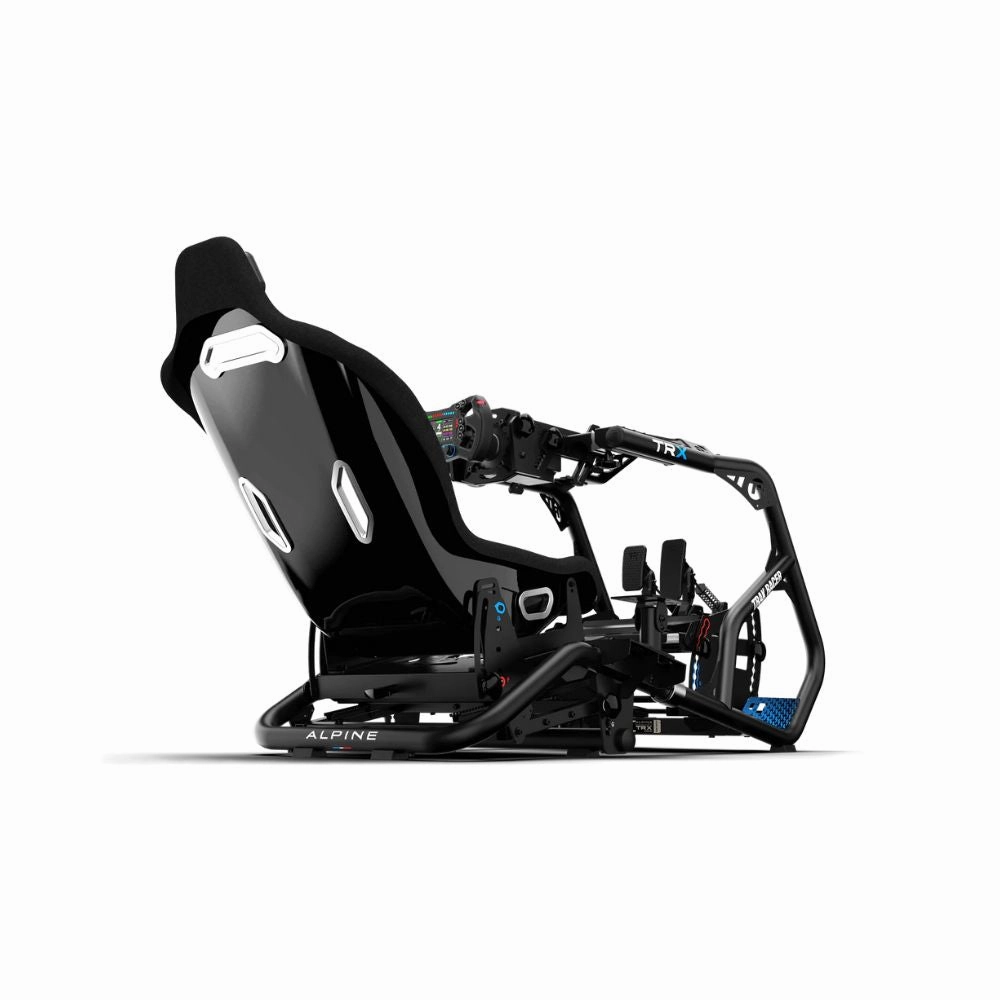

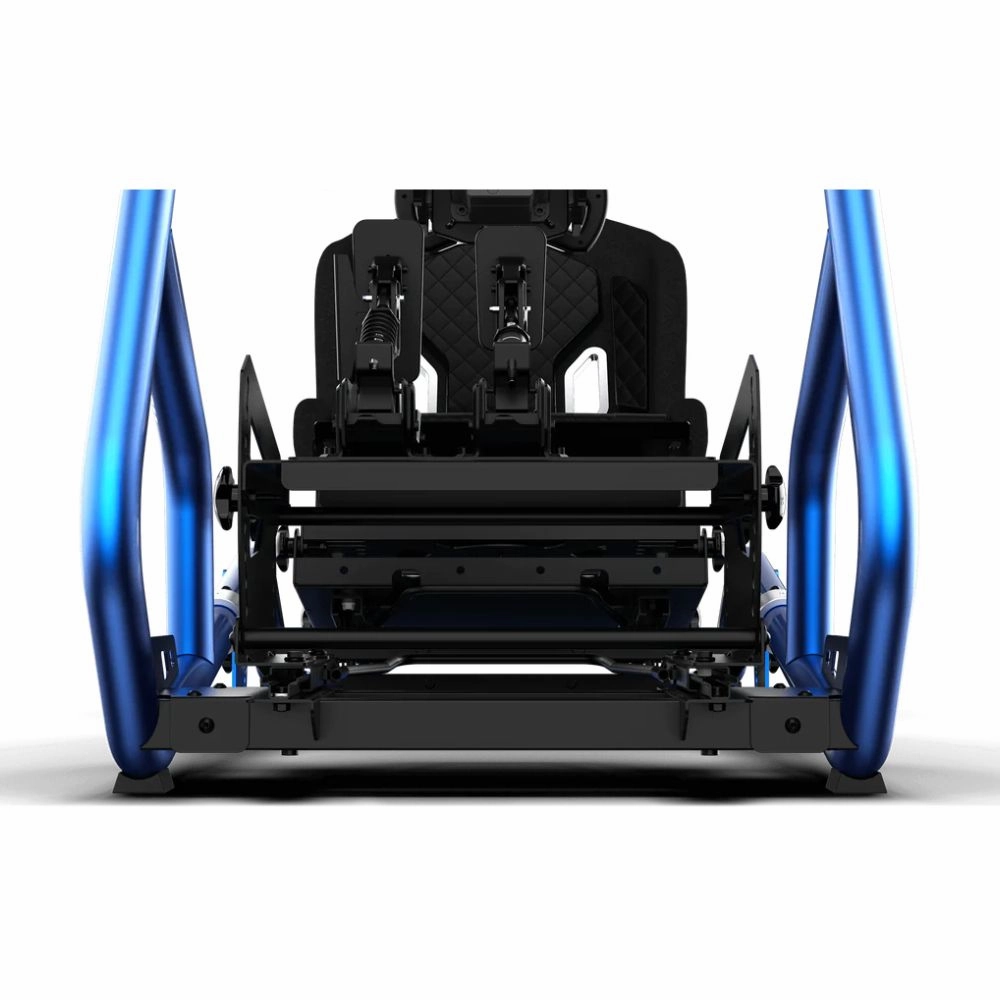

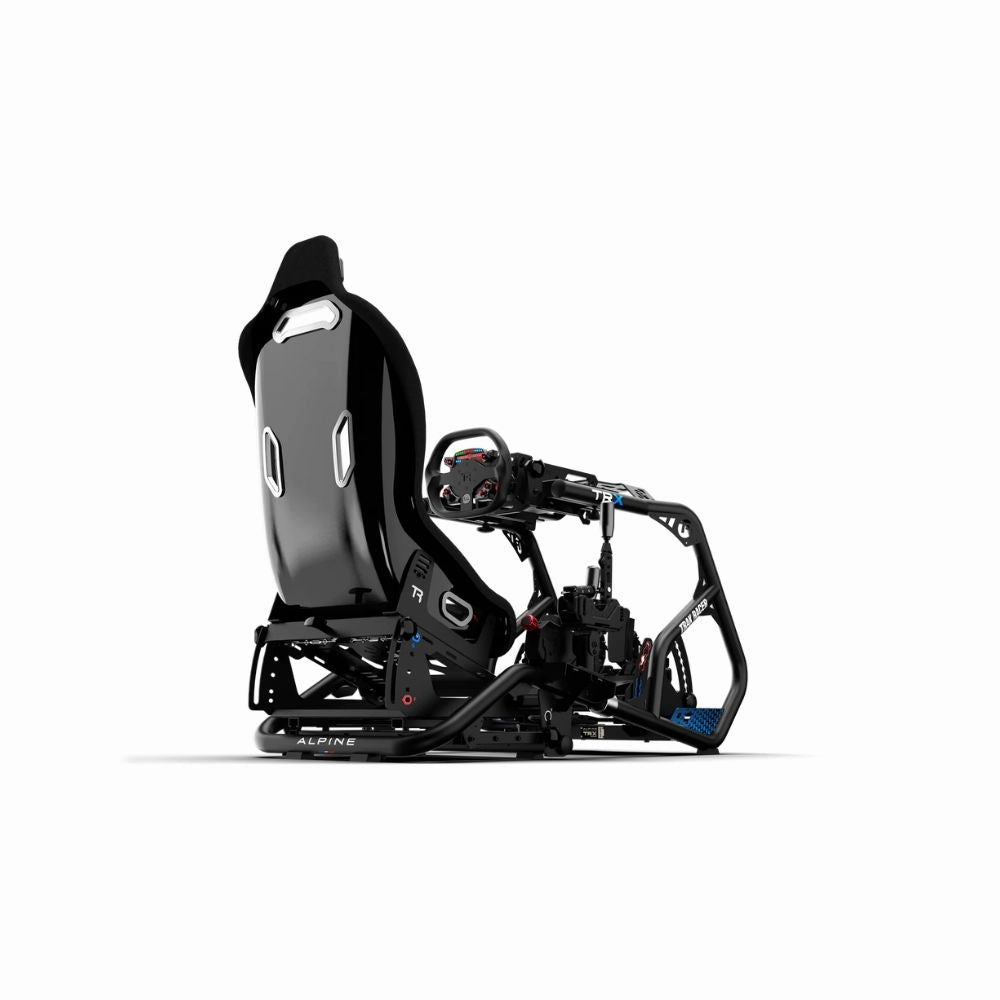

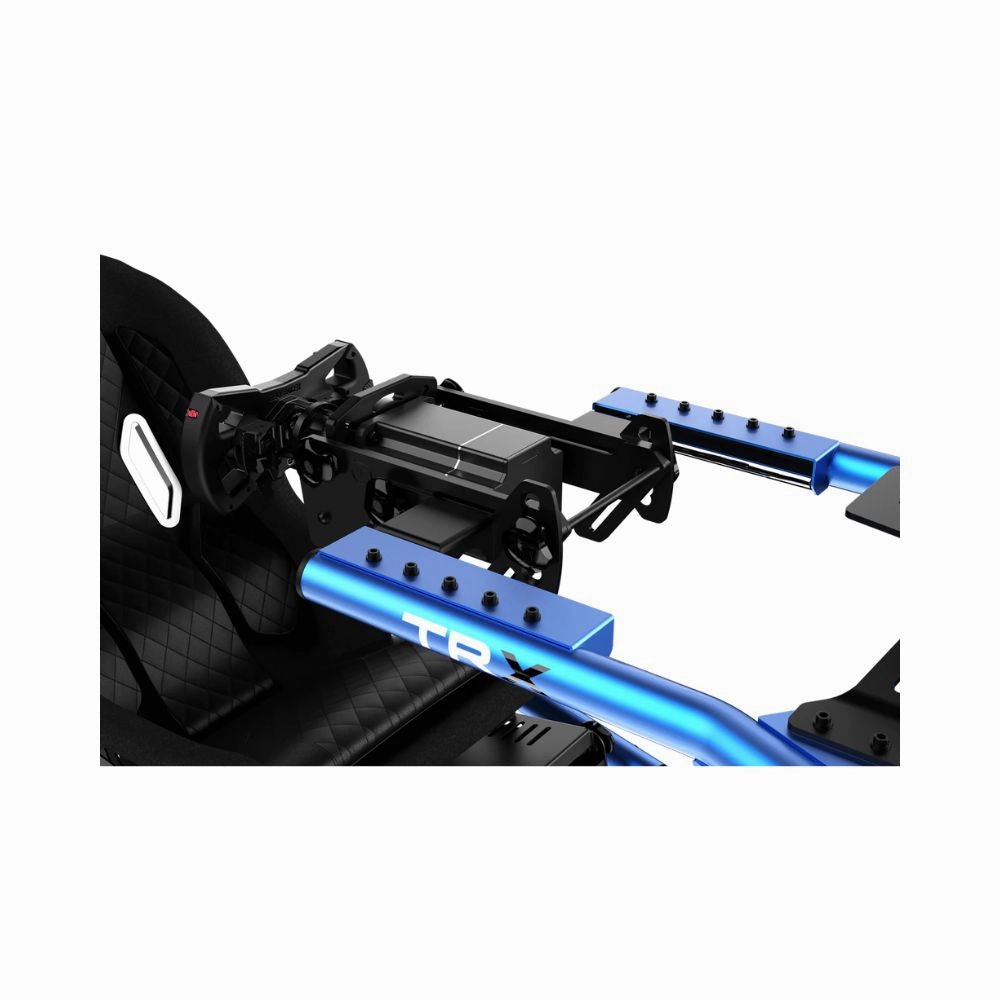

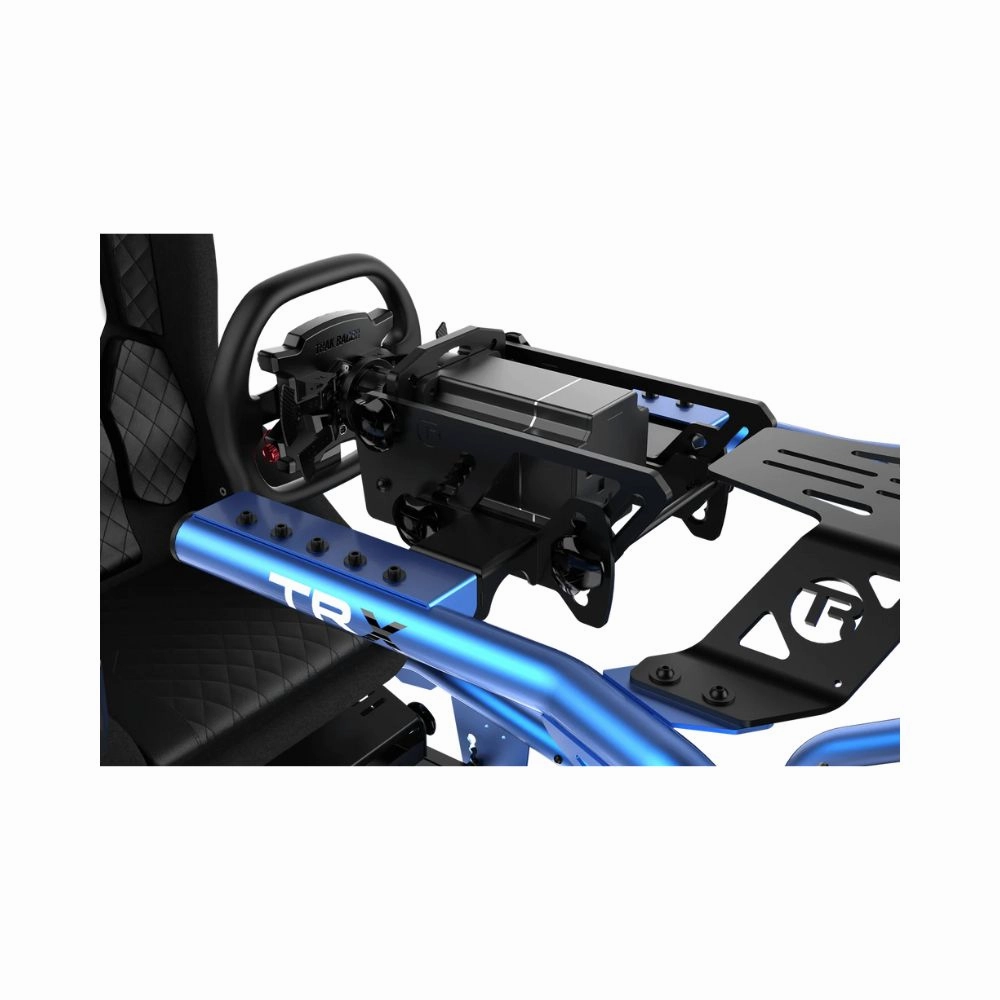

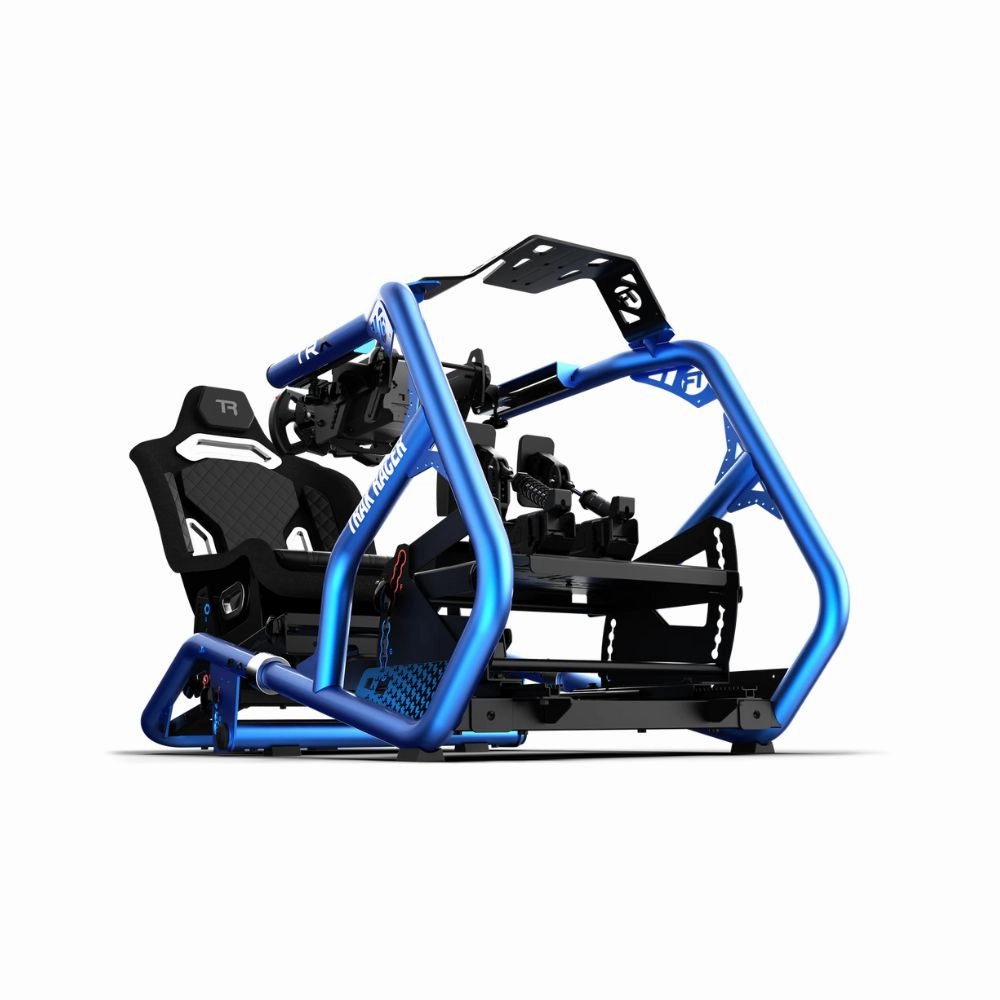

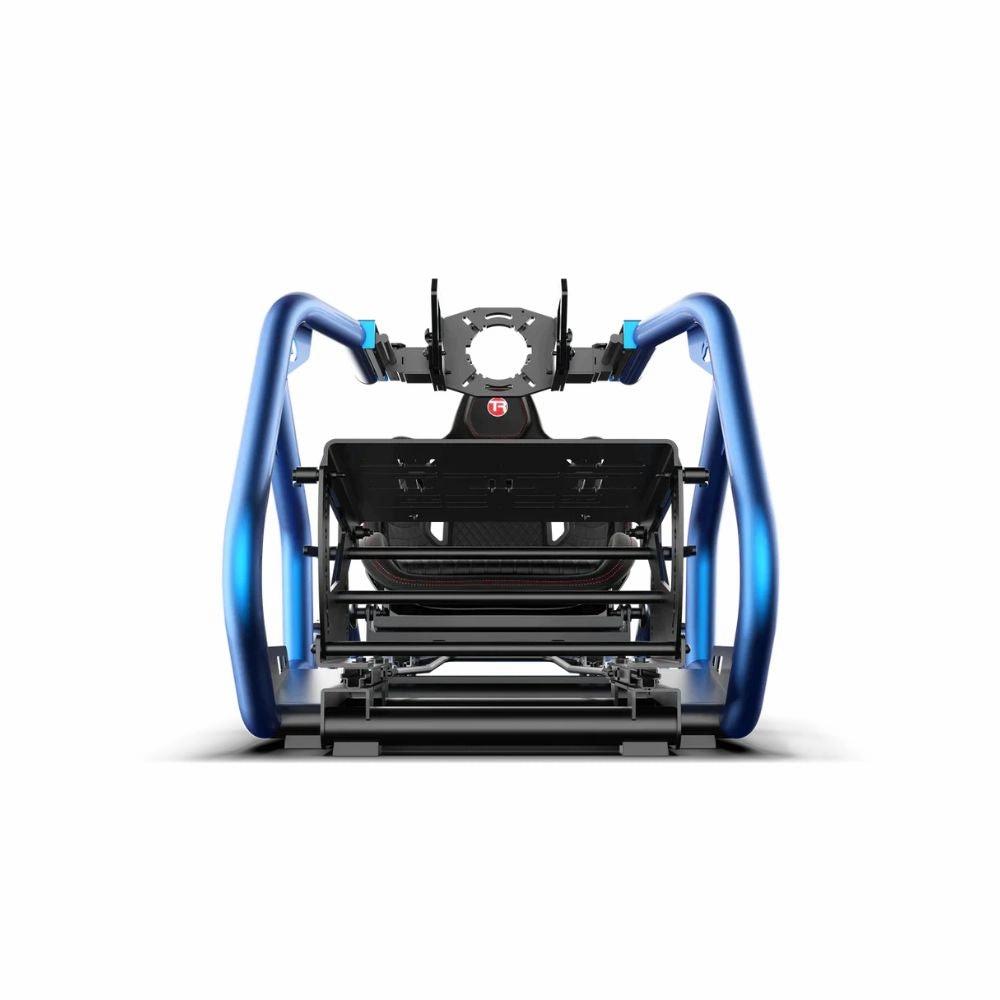

Race like a real F1 racer with the TRX sim rig
The TRX racing sim is the first rig co-engineered with F1 powerhouse Alpine Racing, built for serious racers who want more than just a seat and pedals.
Switch between Formula and GT positions in seconds with its dual-mode system, giving you full control over your setup.
Every corner, drift, and straightaway feels tight and responsive, just like the real thing.
It’s not just a sim rig—it’s a precision machine built to push limits, whether you're chasing lap times or sharpening your skills for race day.

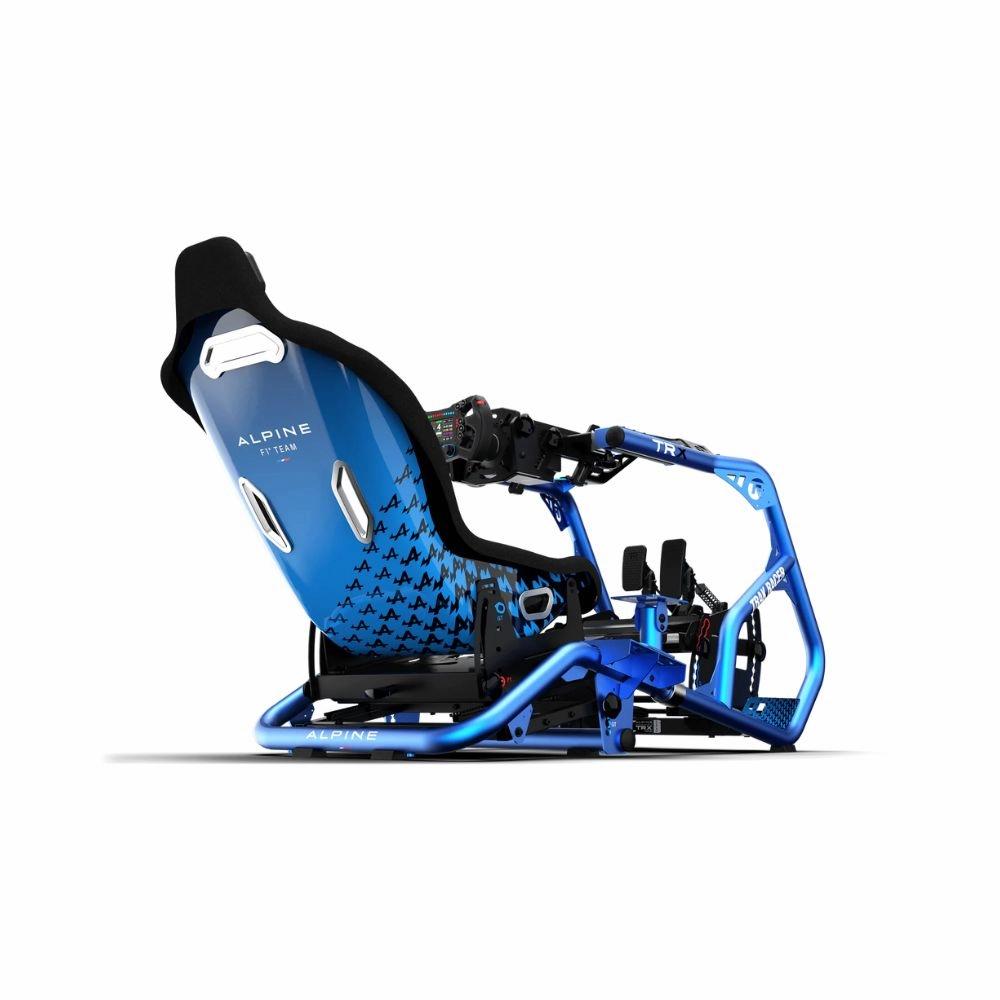

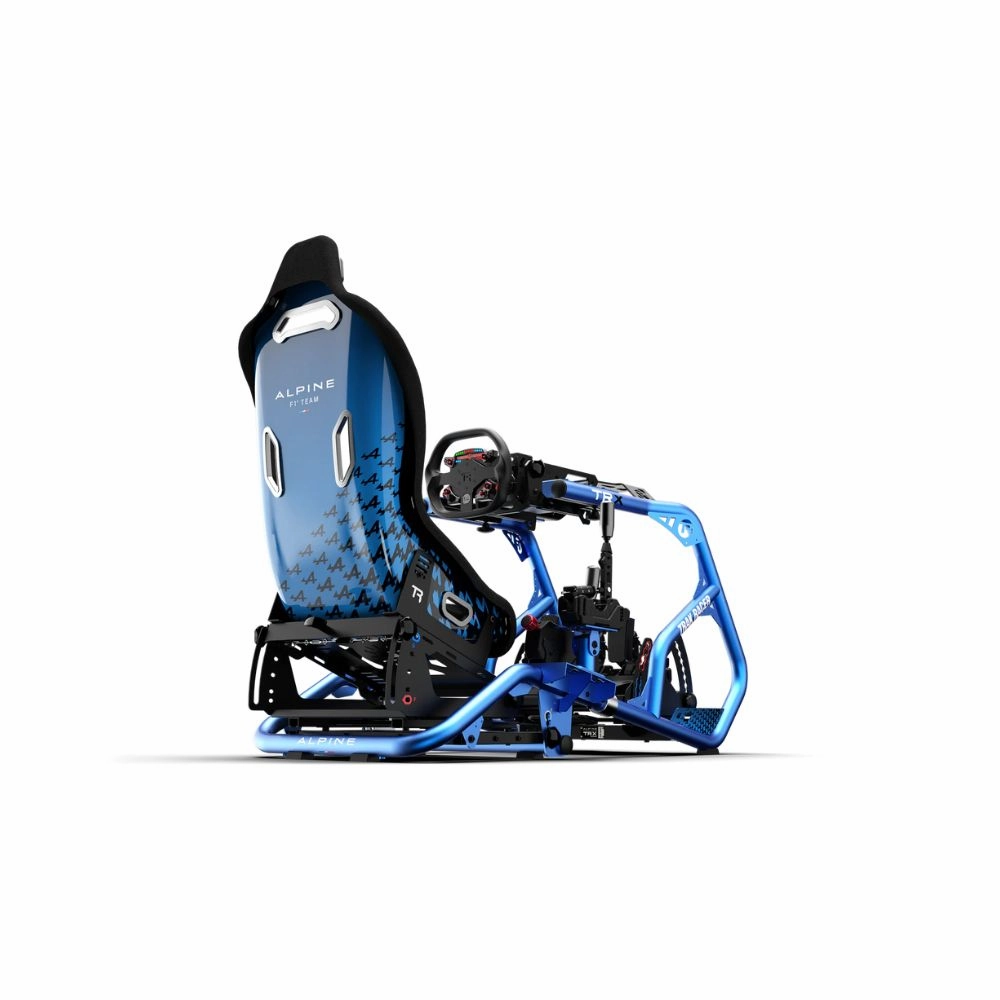

Get unmatched support with the TRX seat
The Trak Racer TRX seat is engineered for serious performance.
Co-developed with Alpine F1 engineers, it’s designed to lock you into the perfect driving position for both Formula and GT racing.
The adjustable padding, removable cushions, and repositionable headrest let you tailor the fit to your body.
Its rigid fiberglass shell holds up under extreme force feedback and torque, so you can push hard without compromise.
With built-in harness slots and wide compatibility, this seat delivers comfort, control, and adaptability for long, intense sim sessions.

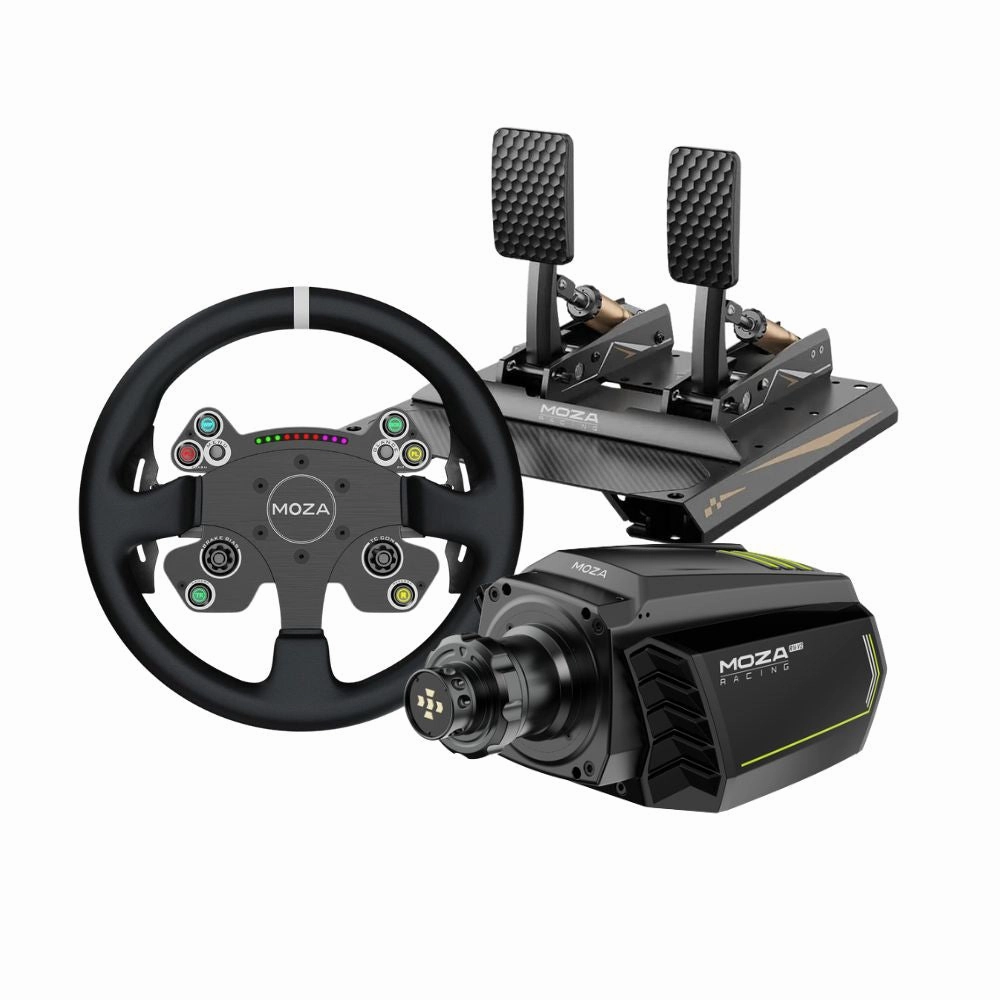

MOZA R16 V2 CRP2 pedals CS V2P wheel
With the MOZA R16 V2 wheelbase, CRP2 pedals, and CS V2P wheel working together, you’re getting a setup built for precision, durability, and serious performance.
The 16Nm direct drive force feedback delivers every subtle shift in traction and road feel, while the CRP2 load cell pedals give you smooth, consistent control with pro-level braking accuracy.
Add in the CS V2P’s forged carbon fibre paddles and programmable buttons, and you’ve got a rig that responds exactly how you want, every single time.

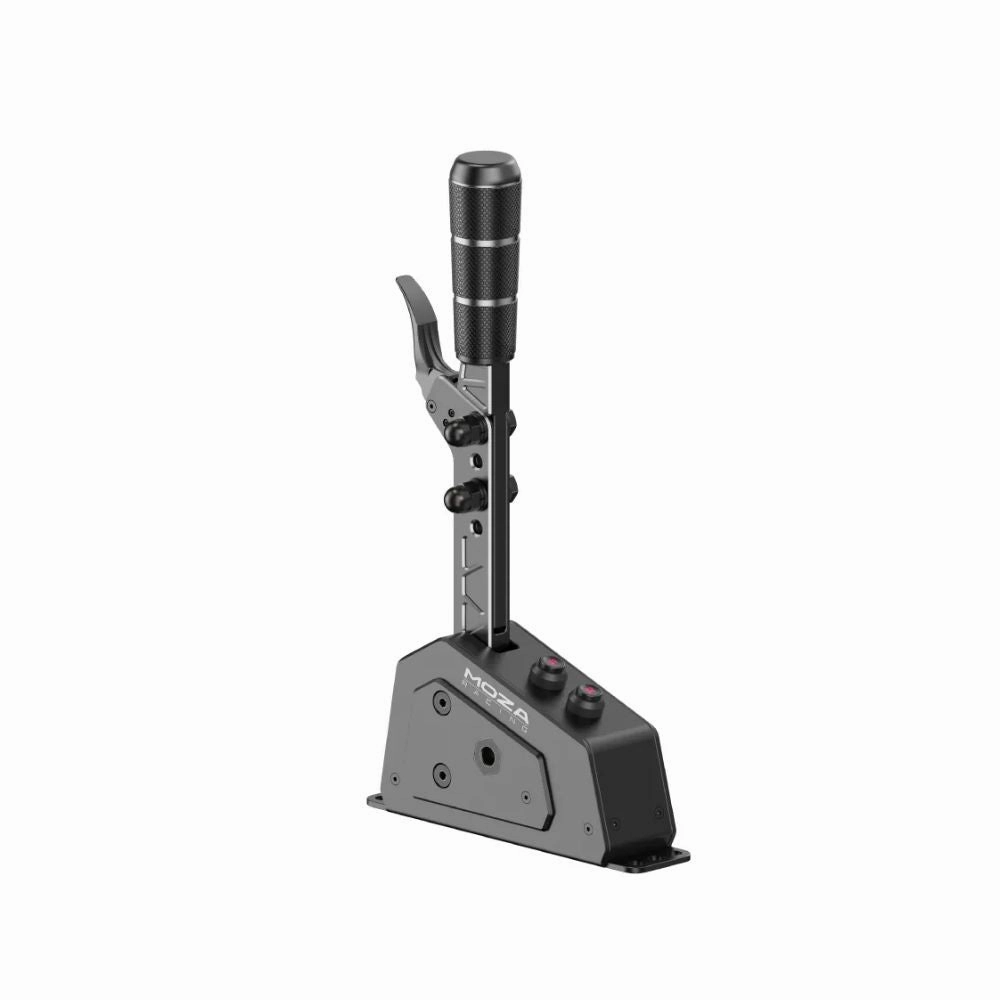

Enjoy immersive gear shifts with the MOZA SGP sequential shifter
Fast, precise gear changes keep you in control when every second counts.
The MOZA SGP sequential shifter delivers smooth, responsive shifts with a realistic feedback that enhances immersion.
Built for durability, it offers consistent, tactile feedback without lag or missed inputs.
From quick upshifts to aggressive downshifts, this shifter brings the speed, precision, and control required to stay ahead on the track.

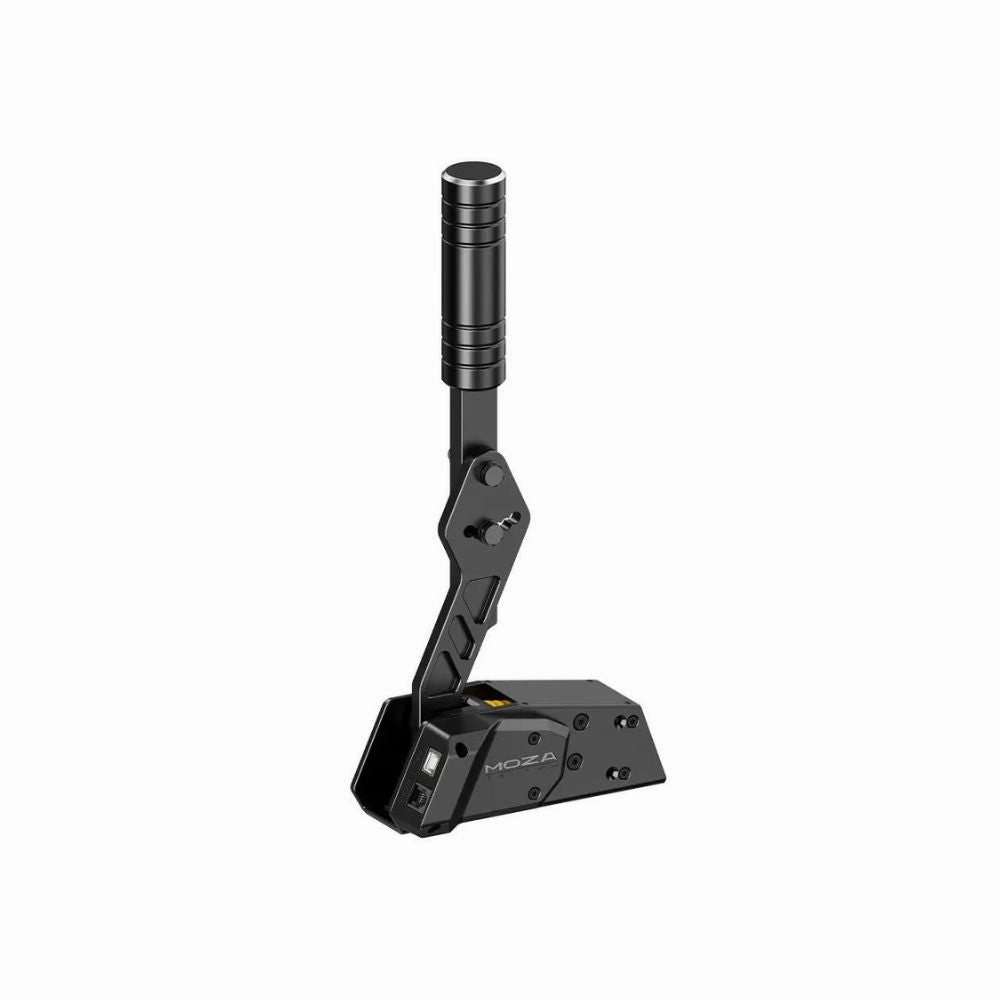

Upgrade your sim setup with the MOZA HBP handbrake
The MOZA HBP handbrake gives you the kind of precision and control that makes a real difference mid-race.
Built from aircraft-grade aluminium, it’s solid, smooth, and built to handle aggressive inputs without flex.
The 16-bit position sensor reads every tiny movement, translating your hand pressure into precise on-track responses—perfect for rally stages or drift entries.
You can also fine-tune the brake’s pressure and travel to match your driving style, so it feels right every time you grab it.

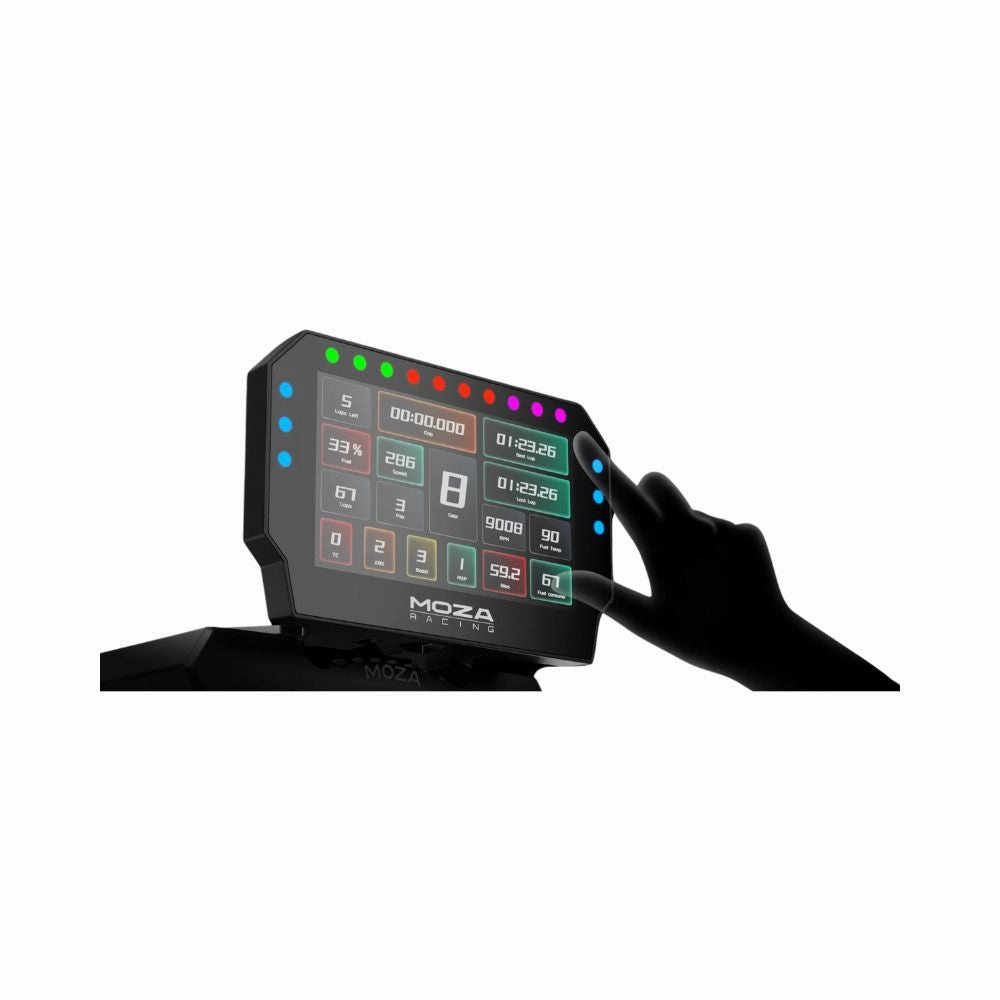

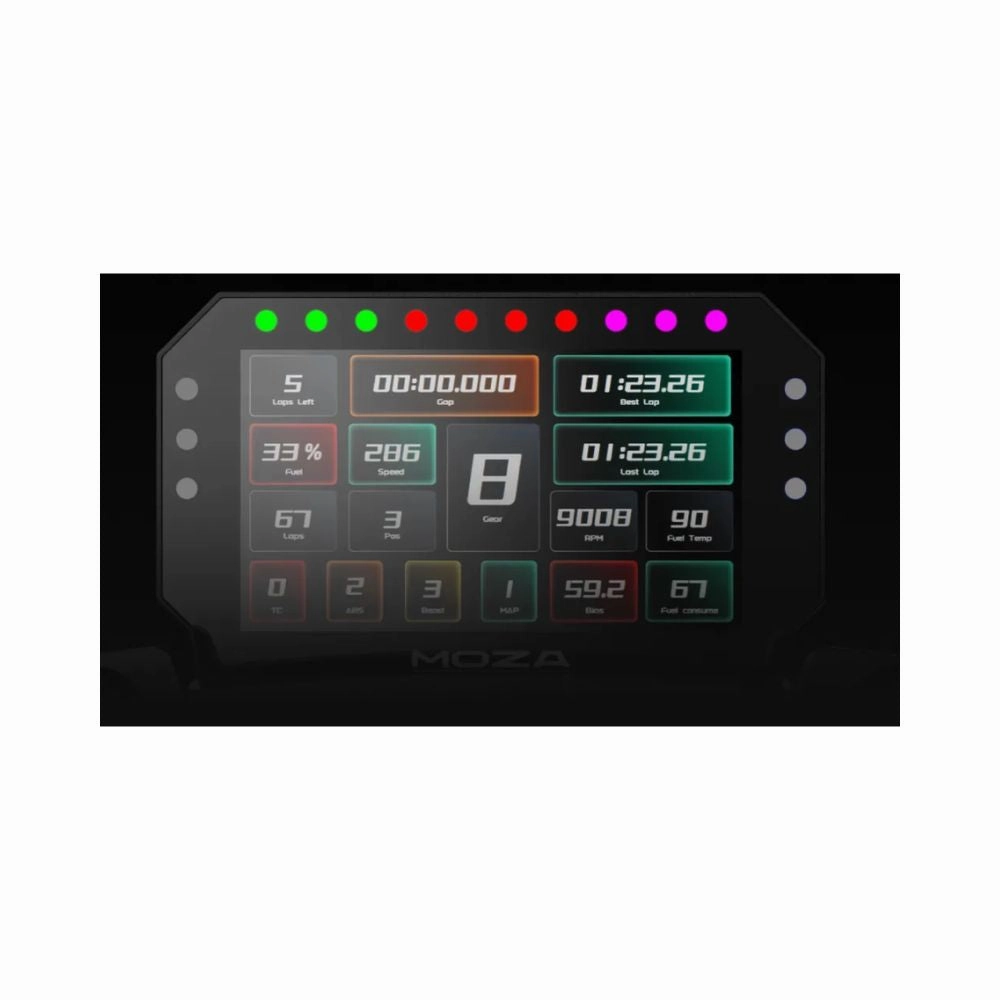

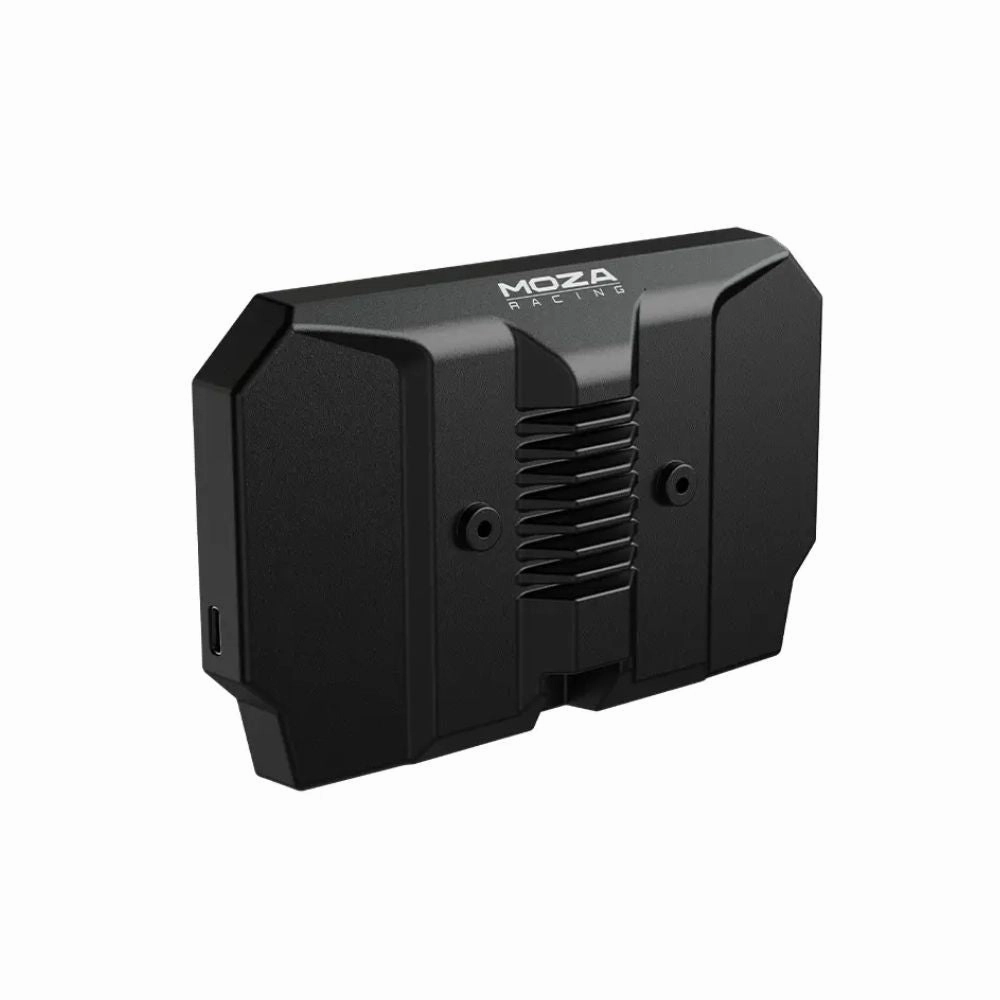

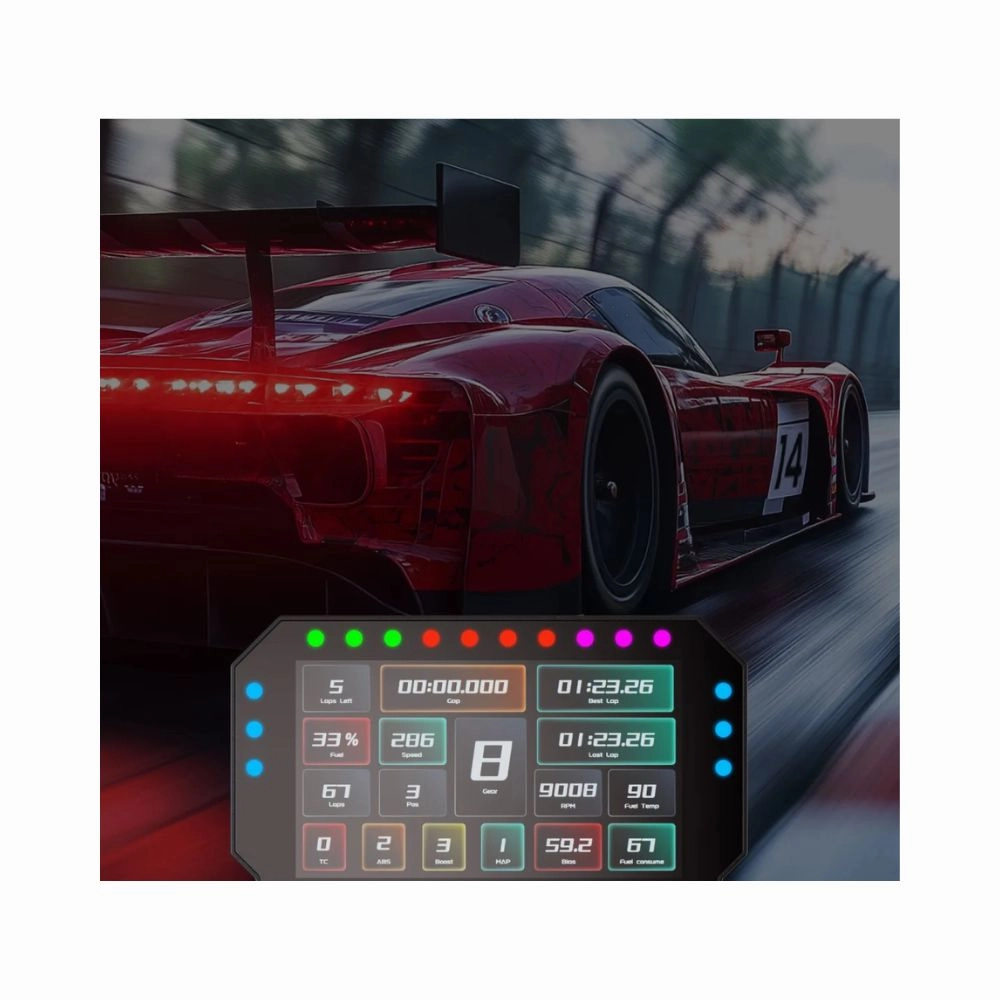

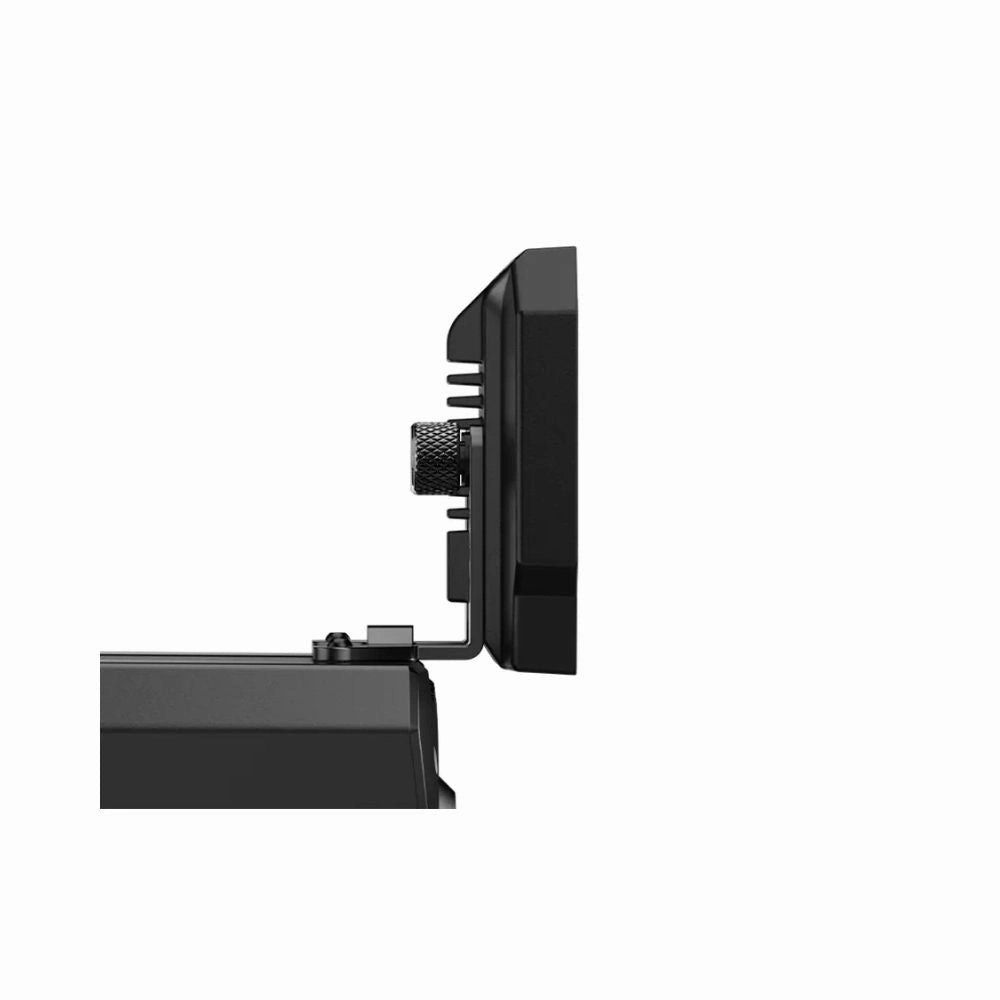

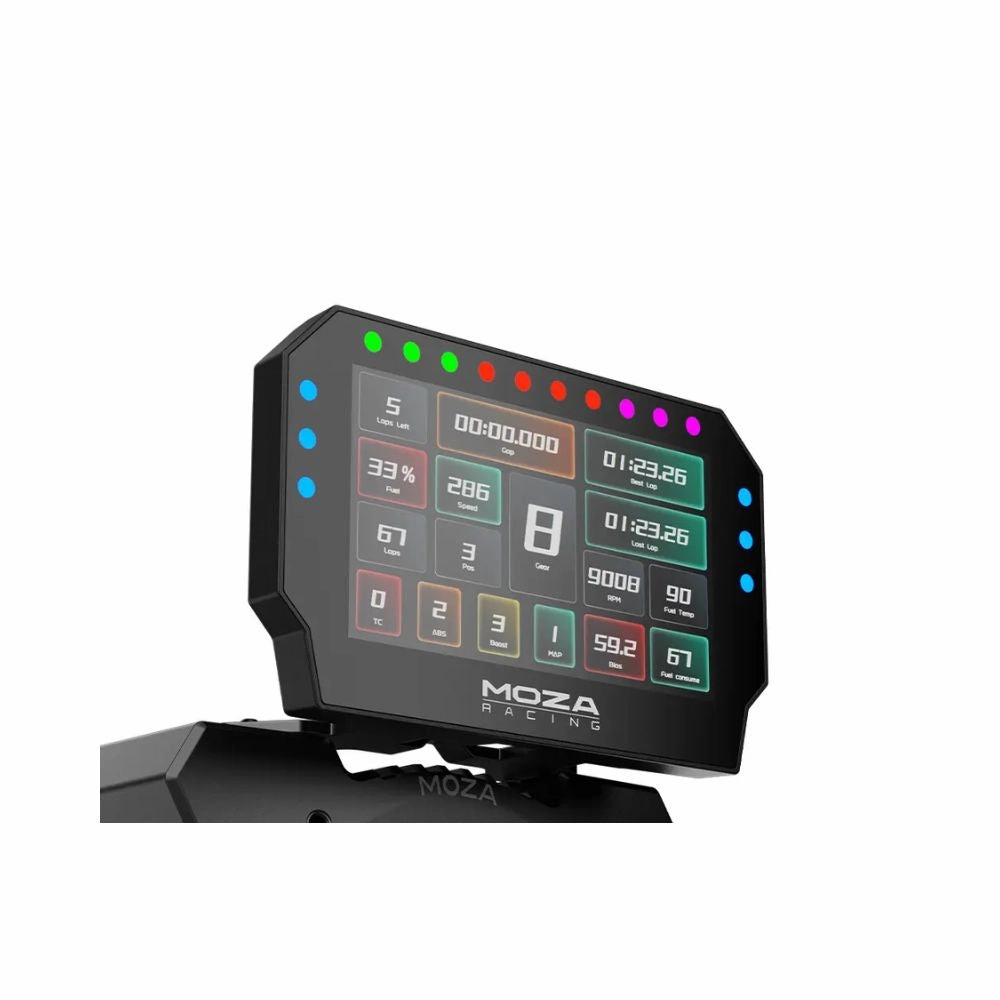

Level up your racing experience with the MOZA CM2 HD dash
The CM2 HD racing dash puts real-time data front and center with its sharp 5-inch 720P touchscreen.
From shift points to flag alerts, the 10 RGB shift indicators and 6 flag lights keep you locked into every detail mid-race.

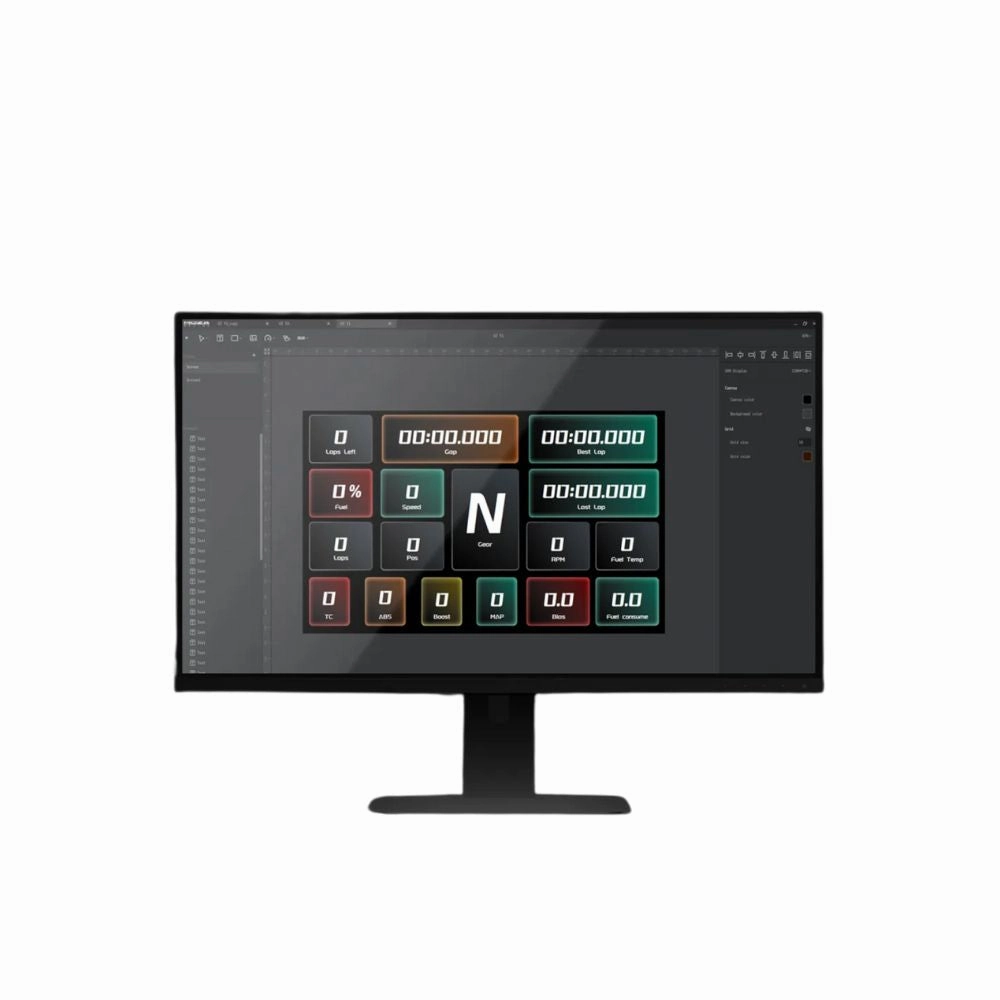

The interface is fully customizable, so you can set it up exactly how you like it.
Powered by a fast quad-core processor and compatible with MOZA and third-party setups, the CM2 adds precision and speed to your racing cockpit—without overcomplicating anything.
Want to customise your build? We can do it!
Every racer has a unique vision for their setup, and custom builds make it possible to bring that vision to life.
That’s why we offer the option to fully customise your racing sim package to fit your exact needs.
If there’s a specific component, feature, or design you want, we can build just about anything or add it to your racing rig.
If you don’t see what you’re looking for, just ask. Reach out via email, phone, or live chat, and we’ll make it happen.
TRX ready-to-race bundle frequently asked questions
What’s included in the TRX ready-to-race bundle?
You'll get the Trak Racer TRX shifter mount handbrake mount, a TRX seat, MOZA R16 V2 wheelbase, CRP2 load cell pedals, CS V2P wheel, MOZA SGP sequential shifter, MOZA HBP handbrake and MOZA CM2 HD racing dash
Can I upgrade components in the package?
Absolutely! You can customise your setup in any way you want. Options to upgrade individual components are available, allowing you to enhance your rig as you progress in your sim racing journey.
Is this bundle suitable for beginners?
Yes! Designed with both new and experienced drivers in mind, this package is perfect for anyone starting out or looking to seriously upgrade their sim racing setup.
How does the warranty work for this package?
All components are backed by a specific warranty. See the specifications tab for more details. Trak Racer has a limited 5 year warranty and MOZA with 2 year limited warranty.
How stable is the TRX racing sim? Will it move when I’m driving?
This setup is built for serious racing, and stability is a top priority. Crafted from 50mm steel tubing, the TRX frame offers unmatched stability and rigidity, designed to handle direct drive wheelbases up to 35Nm without any flex or wobble. Once it's set up, you can push your racing limits without worrying about movement.
What kind of force feedback does the wheel provide?
The MOZA R16 V2 direct drive wheel delivers 16Nm of force feedback, giving you a realistic and precise feel of the road. You’ll feel every bump, weight shift, and tire slip, helping you react instantly and sharpen your racing skills.
Is the seat comfortable for long racing sessions?
Yes! The Trak Racer TRX seat is designed for support and comfort, keeping you locked in place without feeling restrictive. Engineered for the extreme demands of Formula and GT racing positions, this seat ensures both authenticity and long-lasting comfort for extended sim racing sessions.
Can I adjust the position of the pedals, wheel, and shifter?
Yes, every key component is fully adjustable. The wheel mount, pedal plate, and shifter mount can all be fine-tuned to match your driving position, ensuring a comfortable and immersive experience no matter your height or racing style.
What if I need help with setup or troubleshooting?
We’ve got you covered. This package includes 12 months of tech support, so if you run into any issues or need assistance setting things up, our expert team is just a call or message away. We’re here to make sure your racing experience is smooth and hassle-free.
Specifications
Trak Racer TRX racing sim shifter mount handbrake mount
Weight: 89kgs
Size: 620mm wide x 1507mm long
Assembly Time Approximately 90 Minutes
Wheelbase Torque: Up to 35nm
Wheel Mount
Trak Racer 13Nm and 20Nm Direct Drive Bases (Coming Q3 2024)
Thrustmaster T500, T300, T150, TC-PS, TS-XW, TX, 248, T-GT, T80, TMX and T-GT II
Thrustmaster T818
Logitech G25, G27, G29, G920, G923, Logitech G PRO
Fanatec Elite, Clubsport, Podium DD1/DD2, CSL DD , Fanatec GT DD Pro and CSL Elite
AccuForce V1/V2
SIMAGIC M10
Moza R5, R9, R16, R21 DD Wheel Bases
Simagic Alpha Mini
Asetek La Prima, Forte and Invicta DD wheel bases
Cammus 15Nm Direct Drive
Other Wheel Bases - may require mounting bracket (Trak Racer Direct Drive Mount recommended)
MiGe 130ST(small and big
Bodnar 53 series
Simucube SC1 / SC2 Sport, Pro, Ultimate
SIMAGIC ALPHA / ALPHA Mini / ULTIMATE
Also, Flight/Heavy Equipment
Logitech Flight Yoke System (by clamp)
Logitech Flight Switch/Multi/Instrument Panels
Logitech Heavy Equipment
Turtle Beach Velocity One Flight
Honeycomb Aeronautical Alpha Flight Controls (by clamp)
WITH OPTIONAL DIRECT DRIVE FRONT MOUNT (SKU: TR-DDBRDDM)
Trak Racer 13Nm and 20Nm Direct Drive Bases (Coming Q3 2024)
Simucube SC1 / SC2 Sport, Pro, Ultimate
VRS Force Pro
AccuForce V1/V2 (turn the top cover around to fit)
MiGe 130ST(small and big)
Bodnar 53 series
SIMAGIC ALPHA / ALPHA Mini/ ULTIMATE
Lenze MCS12 series
Kollmorgen AKM 52-53-54 (OSW and Leo Bodnar Simsteering systems)
Ricmotech Mini-Mite Direct-Drive Steering System Base
IMMSOURCE ET3 and ET5
Fanatec Podium DD (install without front plate)
Pedal Mount
Trak Racer Loadcell Pro Pedals (Coming Q4 2023)
Fanatec CSL Elite Pedals, ClubSport V1/V2/V3 (including Inverted Pedals)
Thrustmaster T-LCM, T3PA, GT Ed, T3PGT, T3PA PRO add-on and T500, T150 pedals
Heusinkveld Ultimate/Ultimate , Sprint and Pro
Logitech G25, G27, G29, G920, G923, G Pro pedals
Meca Cup1-2, Meca Cup1-3, Clutch and Base Plate, Meca Cup 1 Evo Hydraulic & LC
VRS DirectForce Pro Pedals
HPP PRX 3P, JBV 2/3 Pedal System
Simagic P2000-S100 Pedal Set
BJ Sim Racing Steel Series, 1000psi Hydraulic
DC Sim Racing DC3
Racewerk S1 Hydraulic Sim Racing Pedals
Sim Coaches P1-3
Simtrecs ProPedal GT
Velazquez Engineering PRO Hydraulic
Simforge Mark-1
3DRAP Ngasa
Protosimtech PT2
OBP Pro Race V2 Sim Pedal System
Simworx Pro Series
WAVE IMPETUS
Quaife Throttle Pedal and Brake
Cube Controls Hydraulic SP01
Venym Pedals
Moza CRP Pedal set
Moza SRP Pedal set with and without SRP plate
JCL Hydraulic Pedals
Thera Pedals
Asetek La Prima, Forte and Invicta pedals (plate may require new mounting holes)
SRP GT/GT-R/Formula/Formula-R (plate may require new mounting holes)
TRPED-PRO3
Simgrade pedal plate and VX PEDAL
Also, Flight/Heavy Equipment
Thrustmaster TPR: Pendular Rudder Pedals
Thrustmaster T.Flight Rudder Pedals
Logitech Flight Rudder Pedals
Logitech Heavy Equipment
Virpil Ace

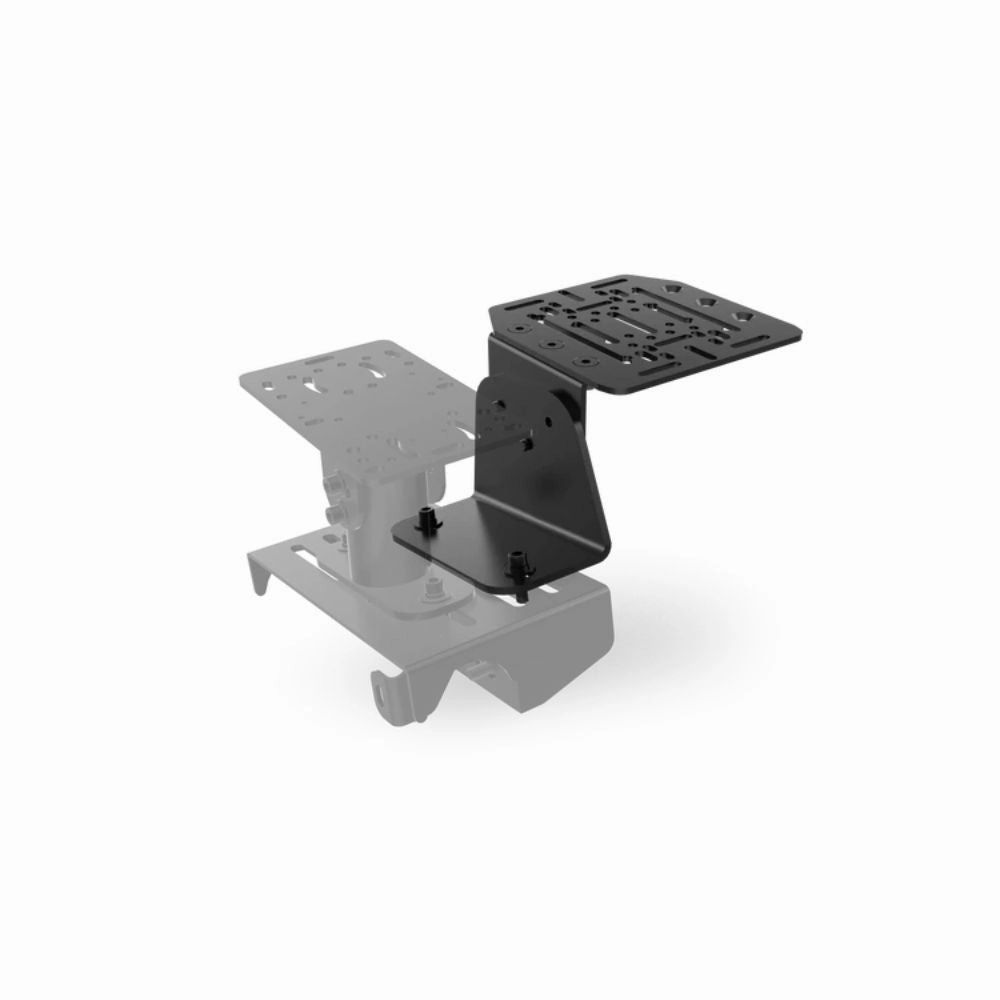

Shifter and Handbrake Mount
Trak Racer Sequential Shifter Pro (Coming Q4 2023)
Fanatec ClubSport Shifter, SQ
Thrustmaster TH8A, RSTSS, TSS
Prosim PSL Sequential Shifter
Heusinkveld SQ Shifter
Logitech G Shifter
DSD SQ Shifter
Jinx Shifter - additional mount required
Simworx Pro Series - additional mount required
VNM Simulation Sequential Shifter
Quaife PSL Sequential V2, Sequential, and H Pattern - additional mount required
Aiologs SQ Shifter
BJ Sim Racing Shifter 3.0
Frex H Pattern
SIMAGIC DS-8X (requires 2 holes to be drilled larger)
SIMAGIC Q1S
SIMAGIC TB-1
Moza HGP shifter
Meca Cup Shifter
TRSS-PRO
PRO-SIM
PRO-SIM LITE
PRO-SIM SEQUENTIAL
OPTIONAL HANDBRAKE MOUNT COMPATIBILITY
Trak Racer Loadcell Pro Handbrake TRHB (Coming Q4 2023)
Fanatec Clubsport Handbrake
Thrustmaster TSS
DSD Hydraulic Handbrake
RealGear RALLYpro Handbrake
Heusinkveld Handbrakes
Prosim Handbrake Digital/RX Analog
Quaife Handbrake
VNM Simulation Handbrake
Aiologs Handbrake
Meca Handbrake
Moza HBP
Trak Racer TRX Seat
Formula & GT Hybrid Design – Adjustable for extreme recline or upright GT position
Co-Developed with Alpine F1 Engineers – For cutting-edge performance and comfort
Fiberglass (FRP) Construction – Ultra-rigid and built for endurance
Injection-Moulded Foam Padding – Customisable comfort with removable cushion pads
Harness-Compatible
Universal Fit – Compatible with most sim racing cockpits
Net Weight: Approx. 17 kg (37.4 lbs)
Fits up to 55” waist | 5-Year Warranty
Optional Extras:
Trak Racer Seat Sliders
Trak Racer Seat Brackets
Weight Restrictions: Up to 160kg

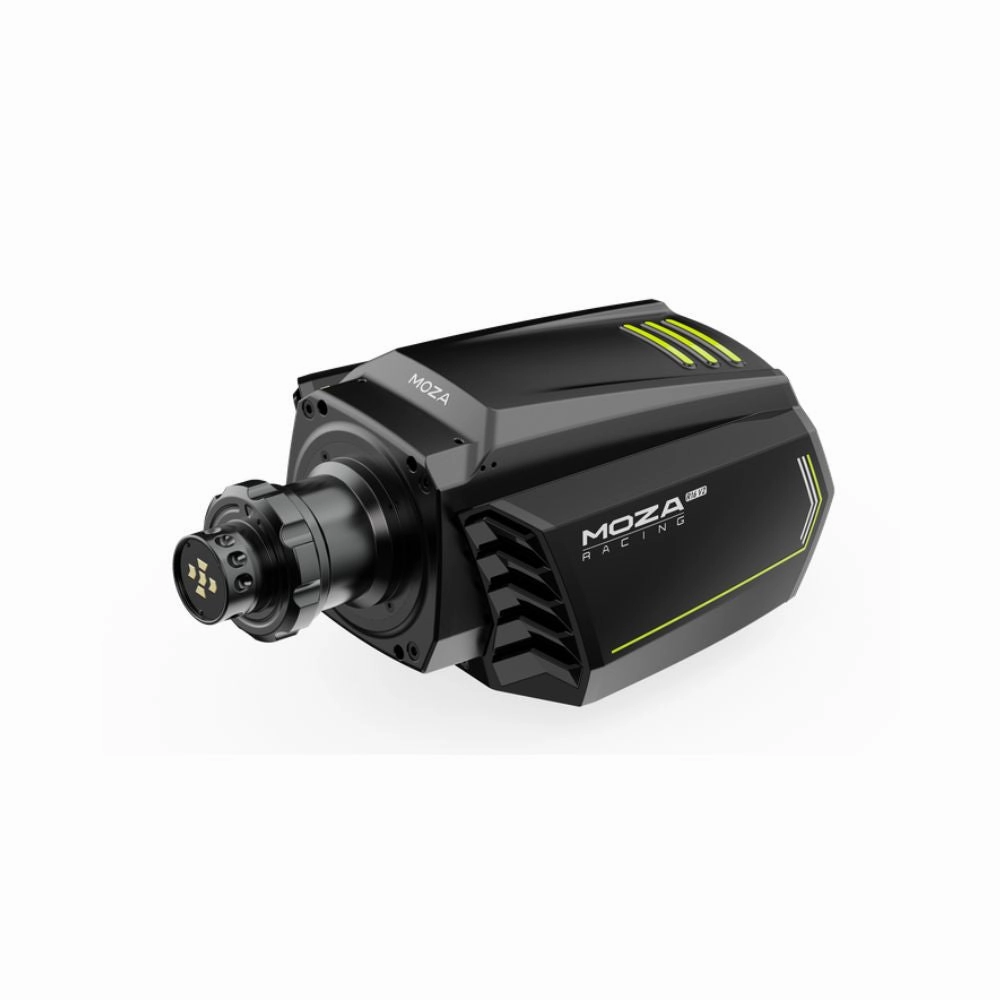

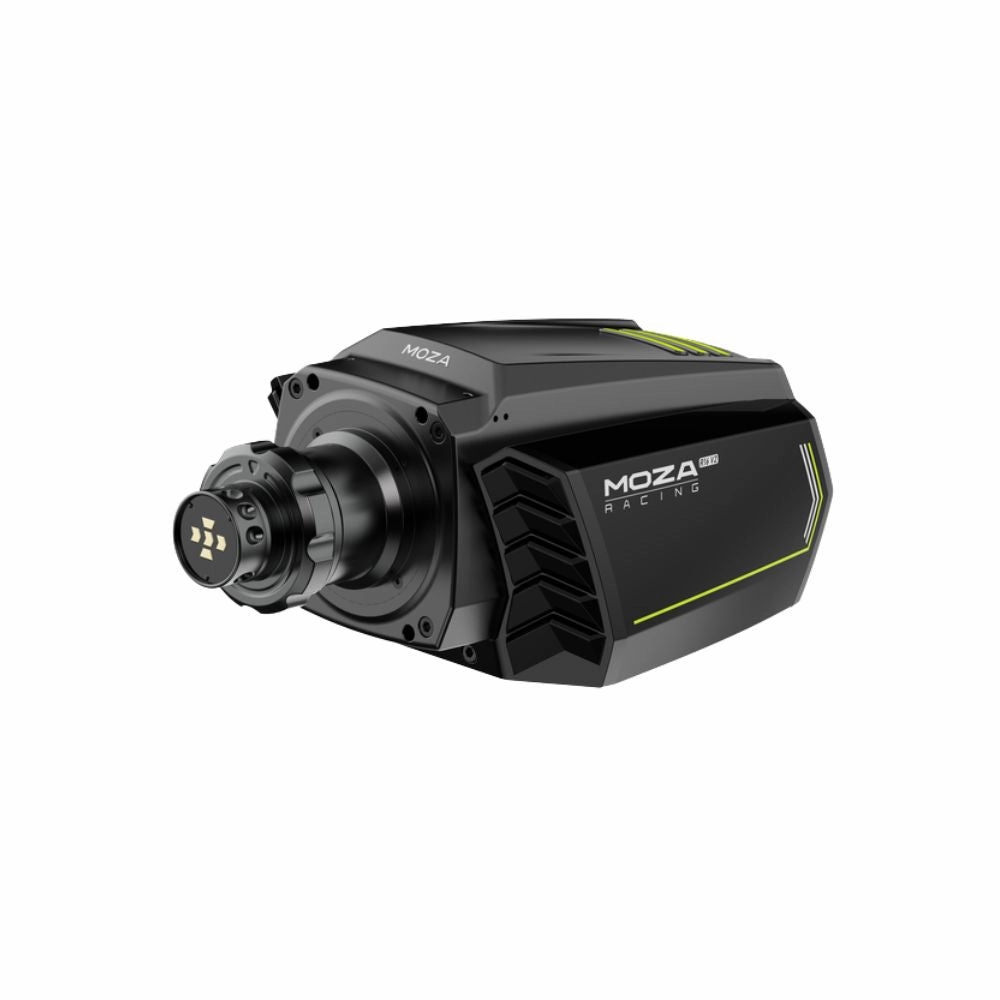

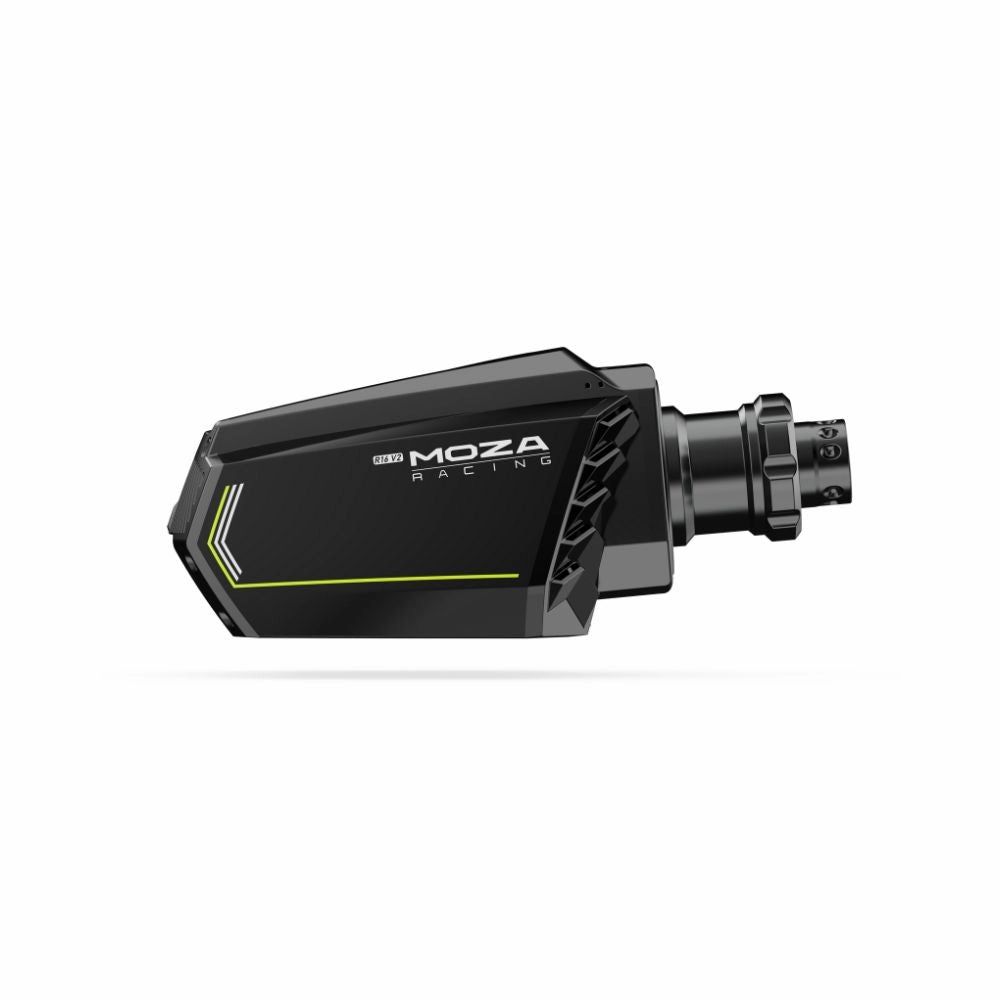

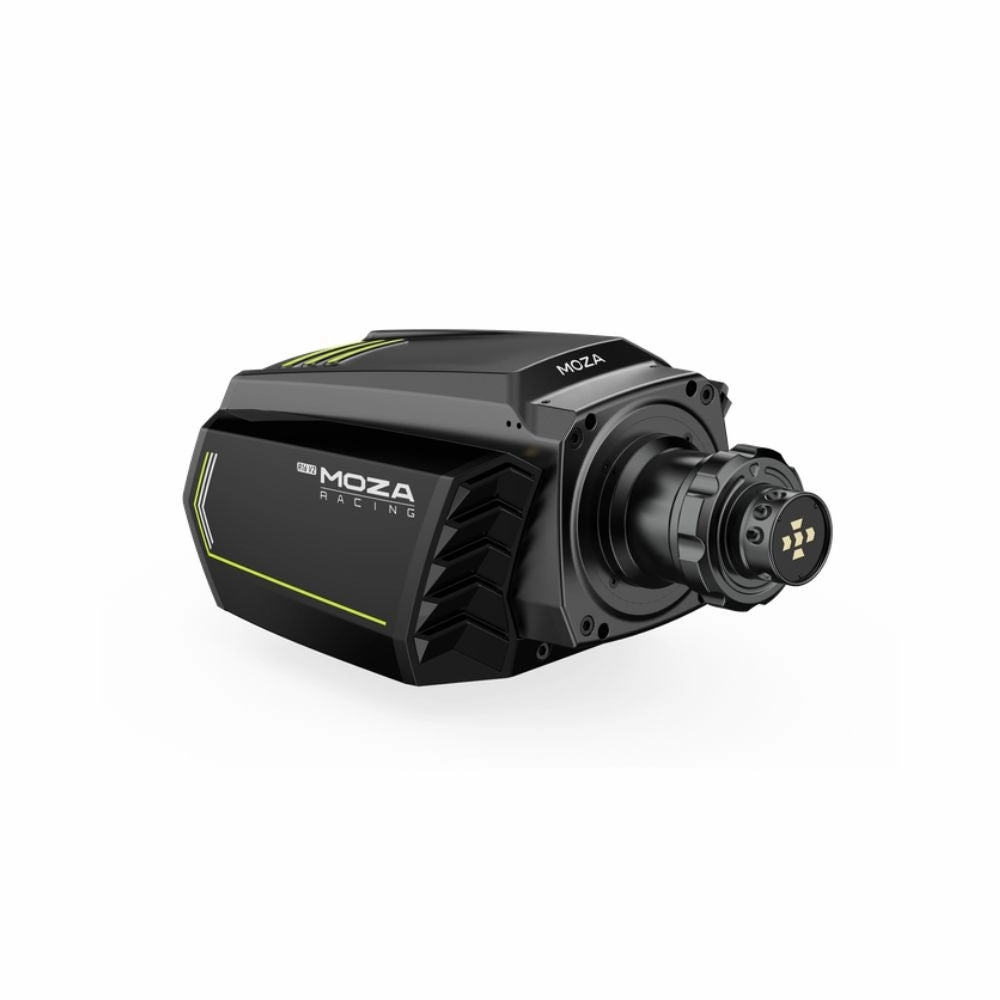

MOZA R16 V2 Direct-Drive Wheelbase
Applicable Platform
PC
Driving type
Direct Drive
Maximum Turning Angle
Limitless
Cover
Aluminium
Colour
Black
Maximum Torque
16Nm
Maximum Power
360W
Input voltage
110V~220V AC —>36V DC
USB Refresh Rate
1000Hz
Indicator
YES
Quick Release
Customised Quick Release
Cooling
NONE
Mode Button
NONE
Interface
Power Supply, Data, General Interface
Accessories
Instructions，Power Supply，USB Cable，Warranty Card，Screw
Mounting
4-Hole pattern on the underside, optional side mount support with bracket
Mounting Bracket
Bottom Angle Adjustment Bracket/Side Fixing Bracket
Table Clamp
Optional
Side Mounting
YES
Emergency Stop
Optional
Firmware Update
Supported
L x W x H
327mm x 170mm x 130mm
Mass
8.9kg
App Functionality
YES
Shifting Indicator Light
YES

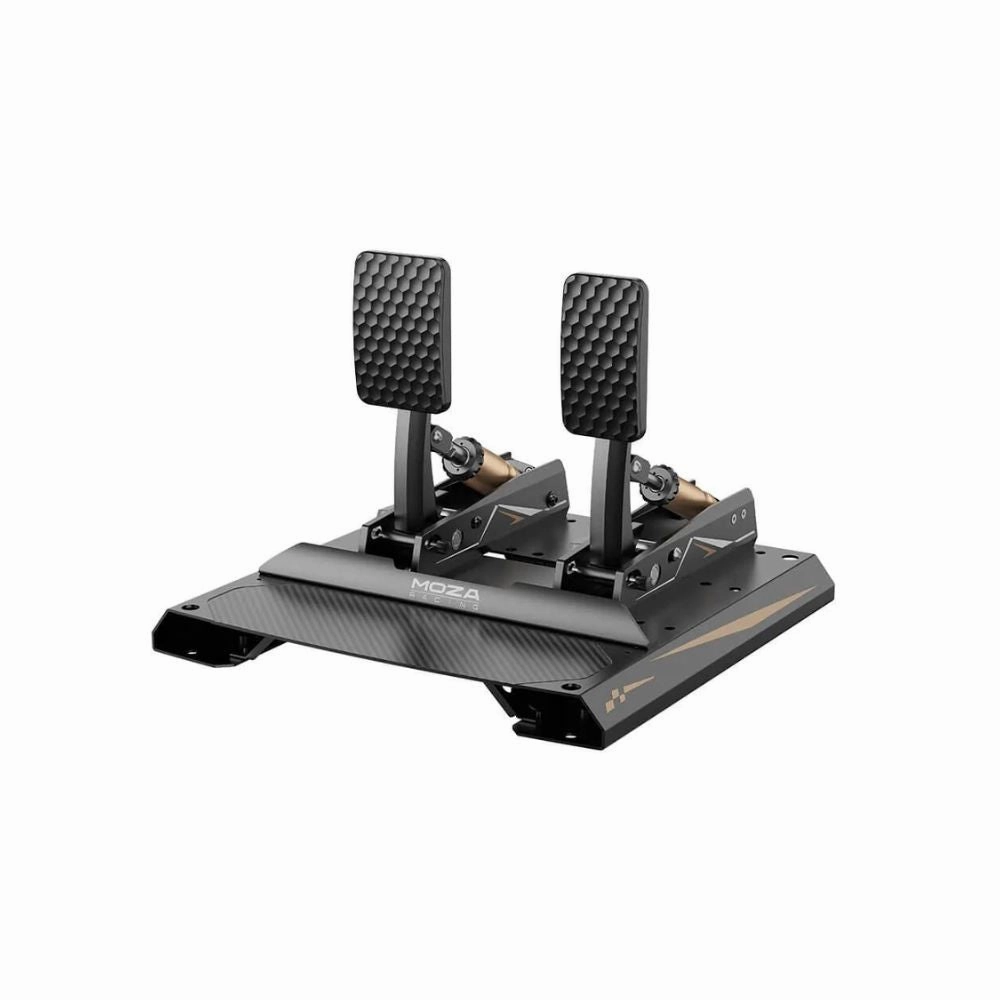

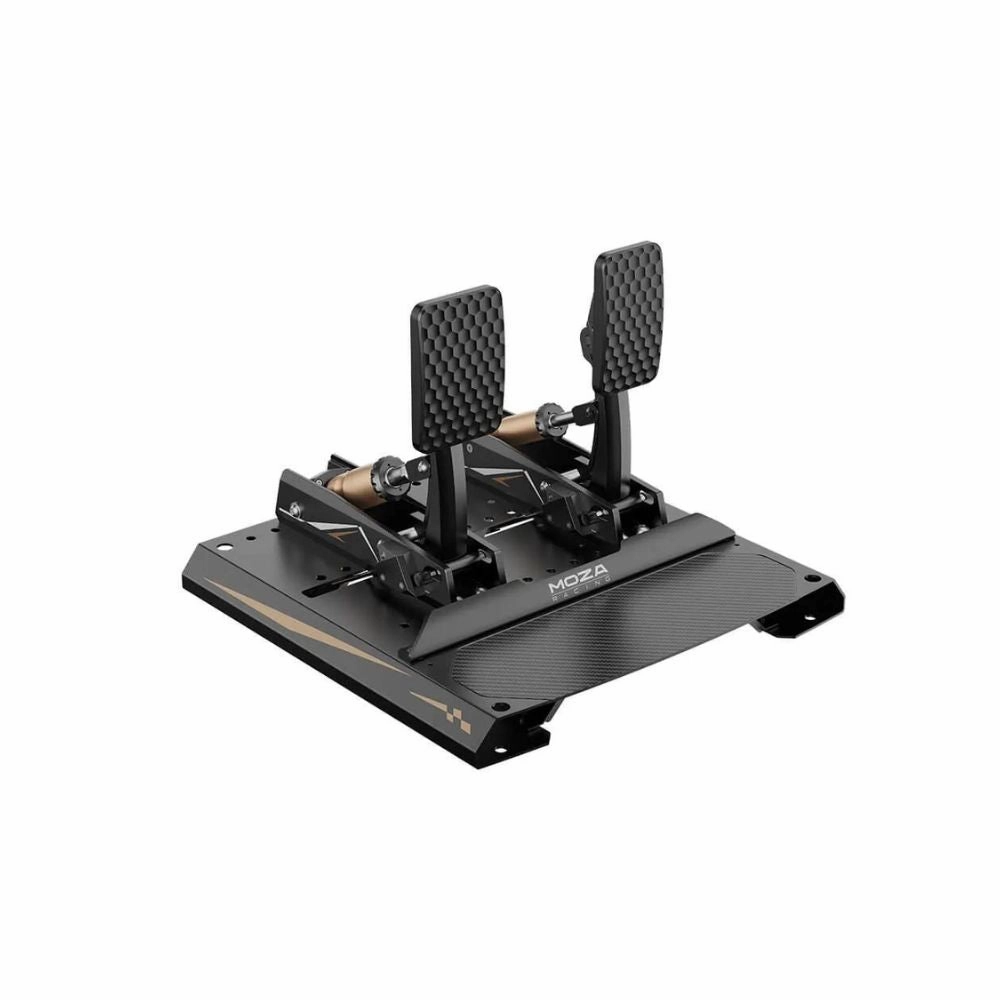

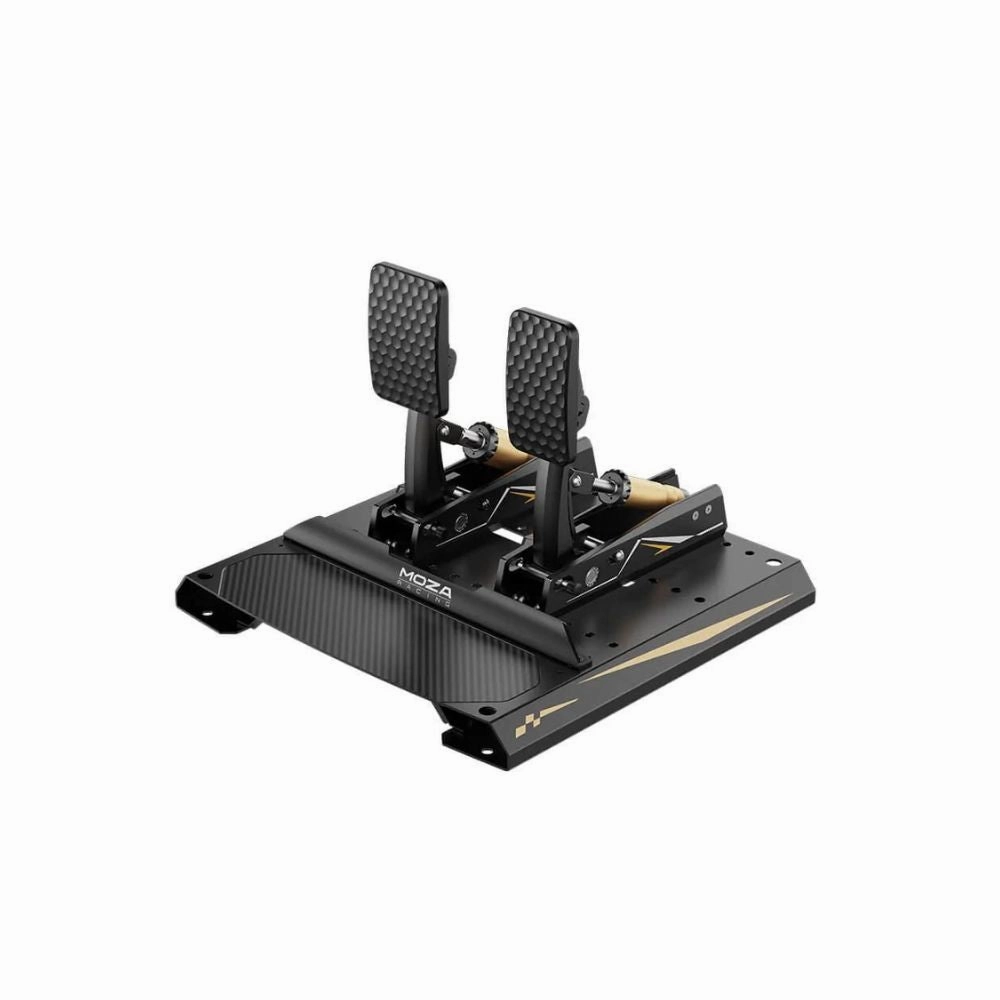

MOZA CRP2 Load Cell Pedals
Pedal Body Material
Aerospace-grade aluminium alloy
Heel Plate Material
3K twill carbon fibre
Base Material
High-strength steel
Load Cell Sensor Range
0–200kg
Brake Sensor
Load cell sensor and angle sensor
Angle Sensor Resolution
15-bit (32768 PPR)
Brake Pedal Feel
115 standard adjustments, 1764 optional configurations
Throttle Adjustment
Two spring options with infinite adjustment
Clutch Adjustment
Two spring options with infinite adjustment
Brake Travel Adjustment
15–20°
Throttle Travel Adjustment
15–23°
Clutch Travel Adjustment
15–25°
Pedal Angle Adjustment
0–15°
Pedal Face Height Adjustment
Up to 30mm
Footrest Adjustment
Up to 30mm
Pedal Curve Adjustment
Adjustable
Real-time Pedal Output Display
Adjustable
Pedal Pressure Engagement Point
Adjustable
Pedal Surface
Biomimetic curved
Inverted Mounting Kit
Optional

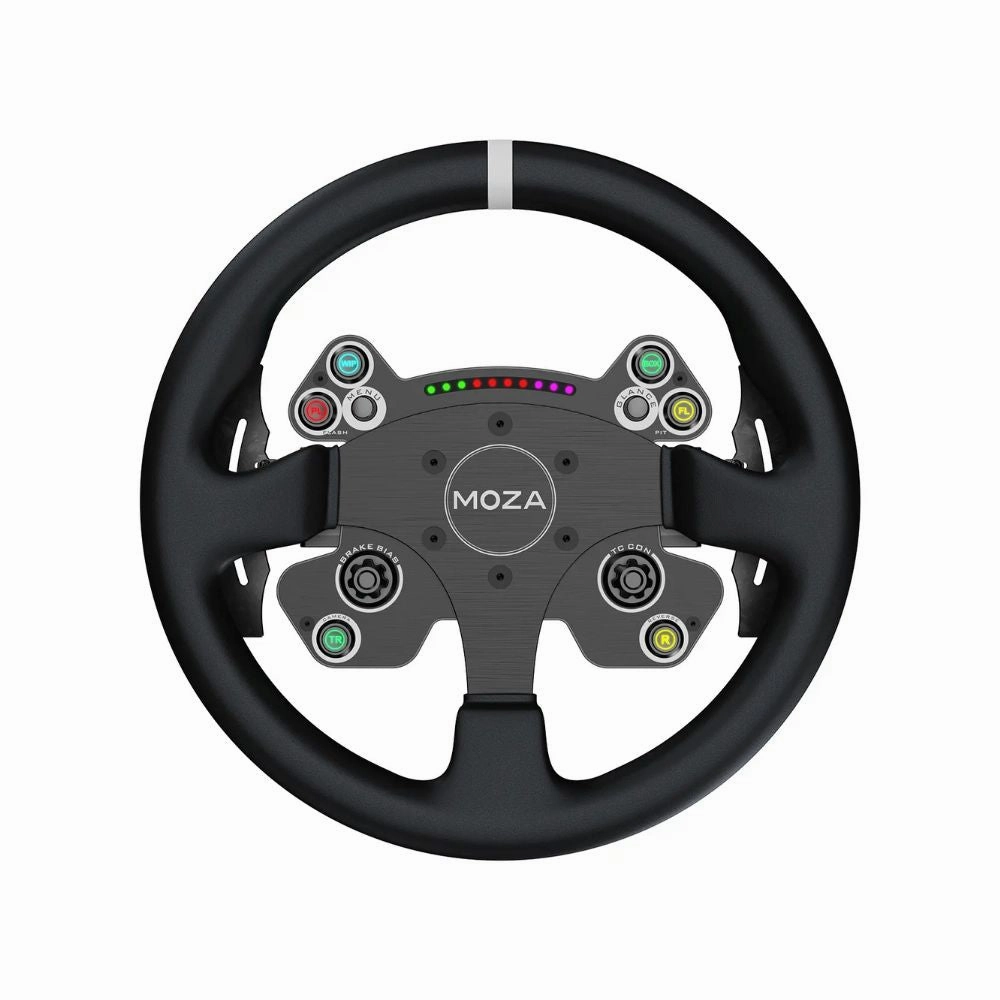

MOZA CS V2P Racing Wheel
Grips: Microfibre Leather
Face Plate Material: Aluminium Alloy
Back Plate Material: Aluminium Alloy
Shifter Material: Forged Carbon Fibre
Size: 330mm
Magnetic Shifters: 2
Mechanical Key Buttons: 6
Joysticks: 2
Rotary Encoders: 2
LED RGB Light Beads: 10
Choice of Colours: 7
Intelligent Telemetry: Yes
Fully Adjustable RPM LEDs through MOZA Pit House: Supported
Release Method: MOZA Quick Release
Communication Method: Wireless
Shifter Sensor: Non-contact Photoelectric Sensor
Compatibility
R5, R9 V1, R9 V2, R12, R16, R21
Platforms
PC: This product is ONLY compatible with Windows PC and is NOT compatible with any gaming consoles (Playstation, Xbox, etc).
These games for PC:
Assetto Corsa
Assetto Corsa Competizione
Dirt Rally
Dirt Rally 2.0
Dirt 4
F1 2018
F1 2019
F1 2020
F1 2021
F1 2022
Project CARS 1
Project CARS 2
Project CARS 3
iRacing
Forza Horizon 4 (This game is currently not compatible with Steam)
Forza Horizon 5 (Win 10)
Live For Speed
Automobilista
Automobilista 2
rFactor2
Euro Truck Simulator 2
American Truck Simulator
KartKraft
WRC 9
WRC 10
BeamNG.Drive
MudRunner
Wreckfest
RaceRoom Racing Experience
MOZA SGP Sequential Shifter
Dimensions: 320mm x 182mm x 52mm
Housing Material: Aerospace-grade aluminium alloy and high-strength steel
Lever Material: Aerospace-grade aluminium alloy
Knob Material: Aerospace-grade aluminium alloy
Adjustable Damper: YES
Multi-functional Handle: YES
Backlit Buttons: 2
Choice of Colors: 8
Height Adjustment Range: 64mm
Mounting Method: Forward or reverse
Connection Method: USB direct connection to PC or compatible MOZA bases
Shifter Knob Thread: M12 x 1.5
MOZA HBP Handbrake
Material: Aluminium
Dimension: 153* 68.3* • 365.5mm
Adjustable resistance: supported
Horizontal lever mount: supported
Side-mount: optional
Bolt pattern: M6
0.7kg Weight
Platforms: This product is ONLY compatible with Windows PC and is NOT compatible with any gaming consoles (Playstation, Xbox, etc).
MOZA CM2 HD Racing Dash
Rear Casing Material
Aluminium alloy
Display Screen
5-inch touchscreen
Display Resolution
720P (1280 x 720)
Display UI
Fully customizable
Top-Mounted Shift Lights
10 RGB LEDs
Side Flag Lights
6 RGB LEDs
Shift Indicator Colors
16.7 million color options
Compatibility
Works with all MOZA bases
USB Direct-to-PC Connection
Supported
Mounting Design
Attaches directly to the base
What's In The Box?
Trak Racer TRX racing sim shifter mount handbrake mount
Trak Racer TRX seat
MOZA R9 V3 wheelbase
MOZA CRP2 load cell pedals
MOZA CS V2P wheel
MOZA SGP sequential shifter
MOZA HBP handbrake
MOZA CM2 racing dash
Reviews
Warranty
See below for the specific warranties related to each product included in this racing simulator package.
Trak Racer: 5 year limited warranty
MOZA Racing: 2 year limited warranty
If for some reason your gear doesn't work as expected, simply contact us and we'll either repair your item under warranty or we may be able to offer a refund/exchange. Again, if for some reason the gear you’ve ordered from us doesn't work as expected, contact us right away and we'll sort out any issues ASAP.
