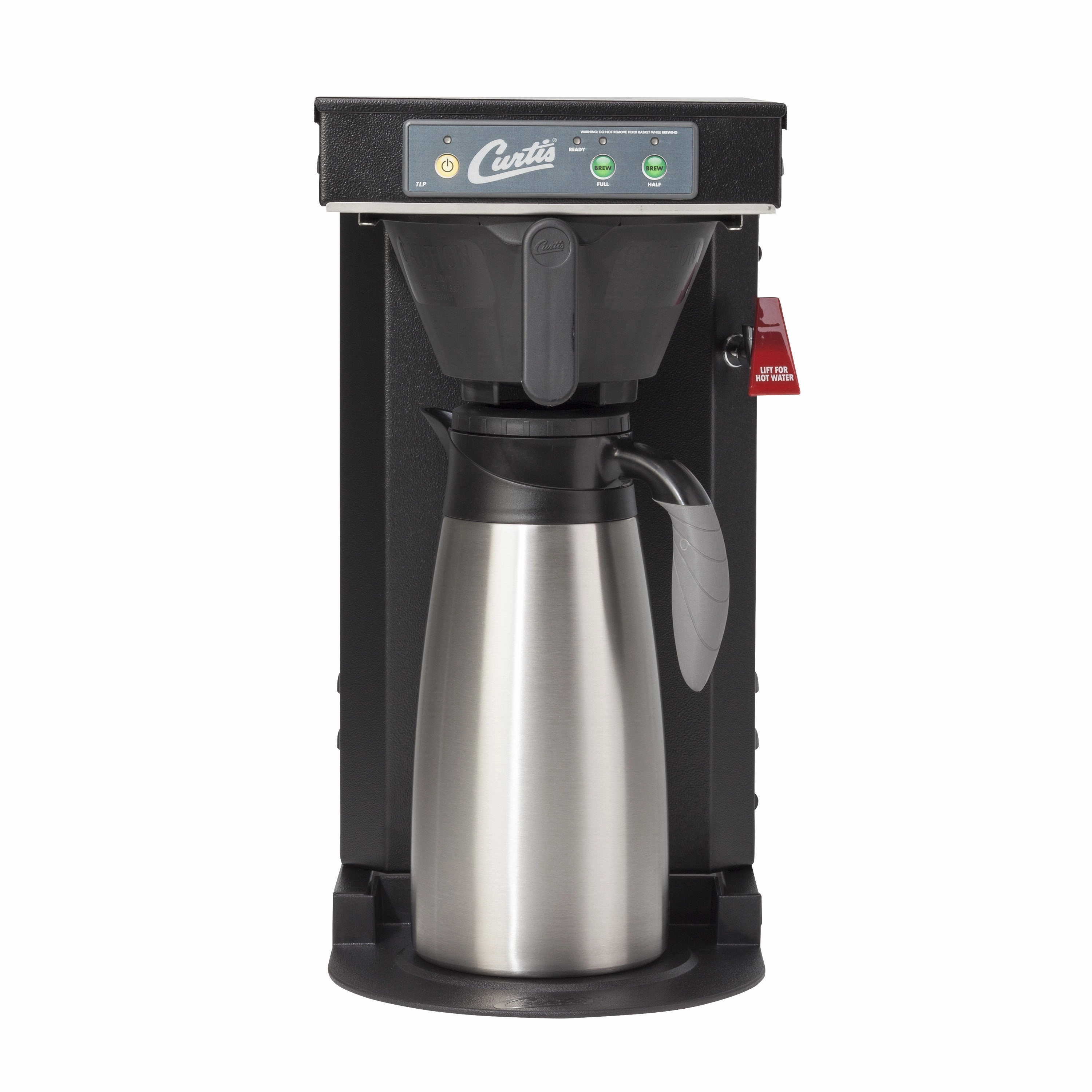

Wilbur Curtis TLP - G3 Low Profile Airpot Brewer with Black Texture
Ultra Compact, Low-Profile Airpot Brewing Systems.
Curtis sets a new standard for compact airpot coffee brewing systems with our TLP series. This enhanced design system combines renowned Curtis brewing expertise with the latest in digital technology. This design offers precision digital performance, greater reliability and extended working life. The Advanced Flow Sprayhead (AFS) provides total control over brewing time, turbulence, temperature and volume – the critical aspects of brewing quality gourmet coffee.
Compact Design That Won’t Crowd a Counter.
The TLP coffee brewing system is universally designed and beautifully styled. It offers big performance yet takes up little space. It easily fits anywhere from kitchen counter to conference room. The generous brew cone clearance accommodates standard 2.5L airpots and gravity airpots alike.
Features That Keep Coffee Flowing.
The TLP is equipped with a drive pump water delivery system. The magnetic drive pump consistently delivers hot water to the AFS Sprayhead for optimized water flow and perfect extraction.
Features:
- Advanced Digital System – Fully encased smart card control module delivers precision performance and superior reliability.
- Touch Controls – Provides million-cycle switches and protection from spare parts handling damage.
- Pulse Brew Technology – Choice of three pulse brew options for optimal coffee flavour and brewing excellence.
- Programmable Brewing Volume – Factory preset for 2.5L (84.5 oz.) airpots.
- Brew Cycle Counter – Tracks brew cycles.
- Programmable Temperature Control – Factory preset to 200°F. Temperature is easily adjusted in 2°F increments from 170° to 206° F for optimum coffee quality. Keeps brew temperature constant. Easily handles back-to-back brewing cycles. Plus, liquid level control interface prevents element burnout.
- External/Non-Immersed Temperature Sensor – Eliminates mineral build-up.
- Convenient Hot Water – Draw hot water for tea, hot chocolate or soup – even during the brew cycle. Optional left side faucet available.
- Innovative AFS Spray head – Perfectly saturates the coffee grounds to extract the richest, fullest flavour from every type of coffee, resulting in a perfect brew every time.
- Quick and Simple Installation – Standard 120VAC operation.
More Details:
DIMENSIONS
| Height (in.) | 17.760" |
|---|---|
| Width (in.) | 10.650" |
| Depth (in.) | 18.390" |
ELECTRICAL
| Phase | 1 |
|---|---|
| Volts | 120 |
| Amps | 12.5 |
| Heat Configuration | 1 x 1450W |
| Wire | 2W G |
| Watts | 1500 |
| Hertz | 50/60 |
WATER
| Connector | 1/4" Flare |
|---|---|
| Pressure | 20 - 90 psi |
| Min. Flow Rate | 1.0 GPM |
| Tank Volume | 1.6 Gal. |
SHIPPING
| Ship Height (in.) | 22.00" |
|---|---|
| Ship Width (in.) | 14.00" |
| Ship Depth (in.) | 22.00" |
| Ship Weight | 29.00 lbs |
| Ship Cube | 3.92 cuft |
